K-2500-1400-8500B-C - Datasheet
ExaktKey
Category Information

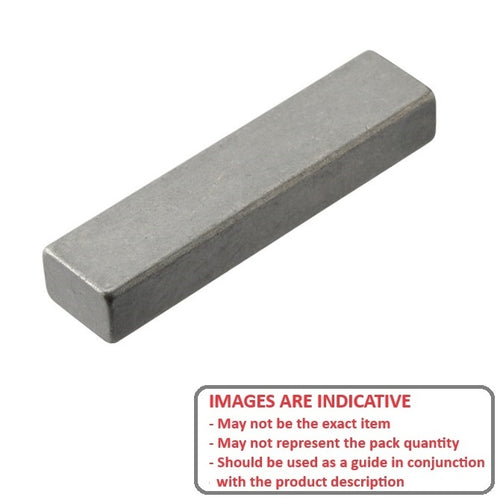

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

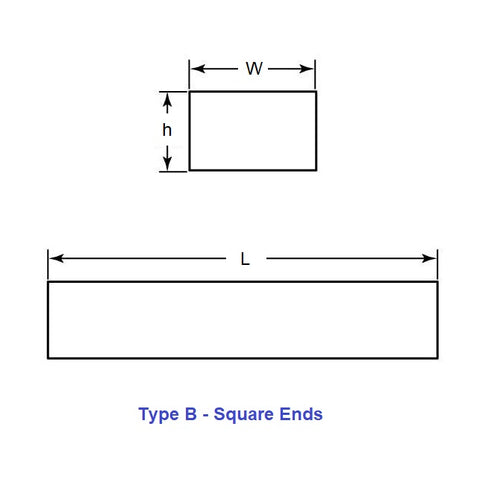

- Width (W)
:
25.00
mm
+ 0 / - 0.076
(Equiv. 0.984 in.) - Height (h)
14.00
mm
+ 0 / - 0.043
(Equiv. 0.551 in.) - Length (L)
85.00
mm
+ / - 0.25
(Equiv. 3.346 in.) - Finish Plain
- Tolerance Type Standard
- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 302514-085
- 302514085
