SKF18RS - Datasheet

MBA

Category Information

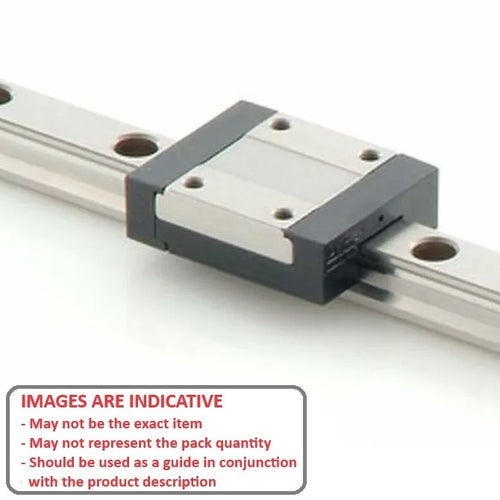

Linear - Rail Systems Miniature Profile

Rail Systems Miniature Profile Linear. Ideal for precision applications where mounting space is limited

  • Gothic arch grooves at raceway contacts enables slide to sustain loads & movement from any direction.
  • Made from stainless steel or plastic for corrosion resistance. End caps have oil holes for easy relubrication.

Product Data

  • Load Capacity : 259.91 Kg
  • No. Of Carriages 2.00

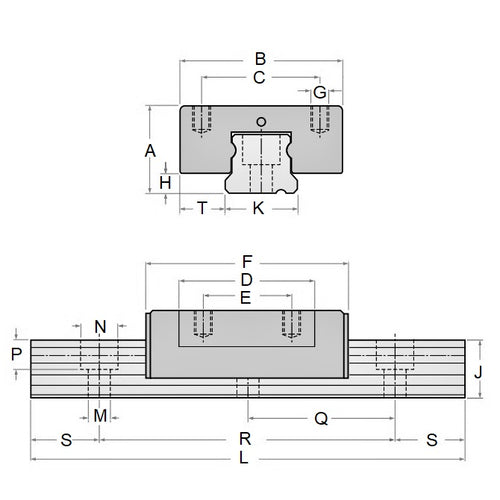

  • Rail Length (L) 390.00 mm
    (Equiv. 15.354 in.)
  • Carriage Length (F/D) 36.00 / 23.00 mm
  • Rail Dimensions (J/K) 8.80 / 12.00 mm
  • Carriage Dimensions (A/B) 13.00 / 27.00 mm
  • P 4.50 mm
  • Rail Bolt Distance (R) 350.00 mm
  • Rail Bolt Distance (Q) 25.00 mm
  • Carriage Bolt Distance (C) 27.00 mm
  • Carriage Bolt Distance (E) 15.00 mm
  • More Information For more information please contact us
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SKF18
    • SKF-18
