AD-2025 - Datasheet

C-JAC

Category Information

Shock Absorbers - Hydraulic - Adjustable - C-Jac

C-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.0 mm
      (Equiv. 0.984 in.)
    • Thread (C) M20 Extra Fine (20x1.5mm)
    • Length (A) 157.8 mm
      (Equiv. 6.213 in.)
    • Shaft Size (D) 6.0 mm
    • Max. Effective Mass 312 Kg
    • Max. Nm Per Cycle 39 Nm
    • Max. Nm Per Hour 30000 Nm
    • Max Impact Speed 3.5 m/s
    • Weight 240 g
    • Body Length (B) 117.0 mm
    • Tip Diameter (C) 17.8 mm
    • Tip Length (E) 15.8 mm
    Country of Origin: AU

    Product Compliance and Data

    Additional Resources

      View full details

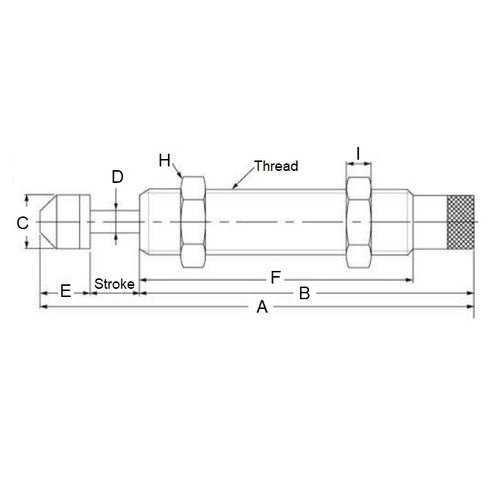

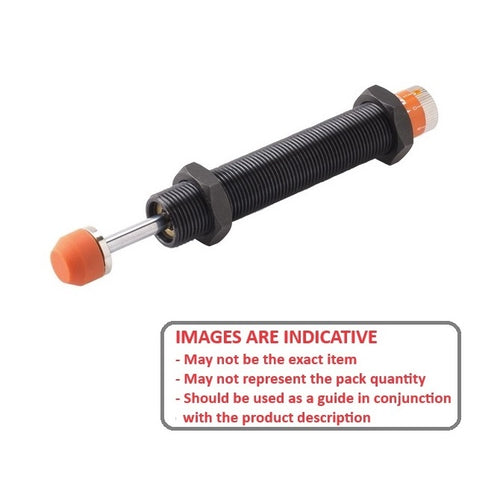

      AD-2025DiagramAD-2025Image
