COL-02540-041-16-S3 - Datasheet
MBA
Category Information

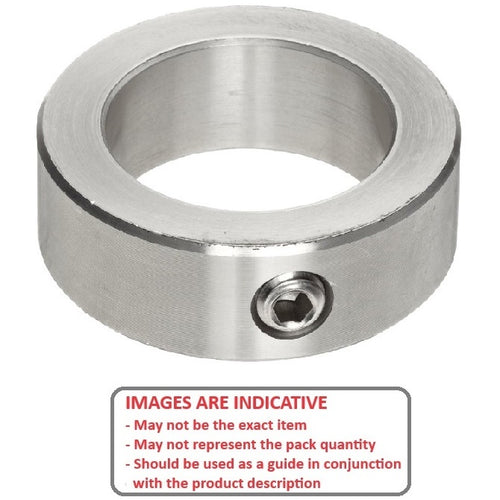

Collars - Shaft - Standard - Stainless SteelStainless Steel Standard Shaft Collars. Includes miniature precision types. 303 and 316 Types.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
25.400
mm
(Equiv. 1 in.) - Outside Diameter (D)
41.30
mm
(Equiv. 1.626 in.) - Overall Width (S)
15.9
mm
(Equiv. 0.626 in.) - Screw Size 5/16-18 UNC (7.94mm)
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 6462K25
- Small Parts SX-16
- SX16
- LSC-16SS
- LSC16SS
