CCI-02540-C - Datasheet

MBA

Category Information

Retaining Rings - Internal - Circlips - Standard - Carbon Steel

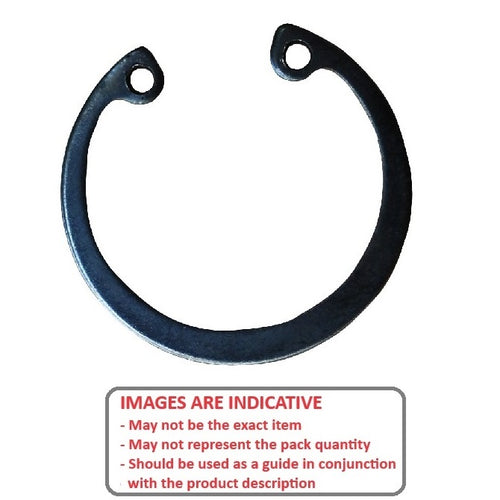

Carbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Plain carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 25.40 mm
(Equiv. 1 in.)
Clip Thickness (T) 1.07 mm _{+/- 0.075}
(Equiv. 0.042 in.)
Groove Dia. (Dg) 27.08 mm _{+ 0.00 / - 0.06}
(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Groove Width (W) 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C) 17.27 mm
Clearance in Groove (C1) 18.80 mm
Min. Lug Diameter (h) 1.52 mm
Min. Extension (n) 2.51
Standard MIL-16625
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

99142A450
NoCor HO-100
Seeger J1X.047IN
HO100
A9Q28-100
A9Q28100
N13000100
N1300-0100
