CCE-02540H-C - Datasheet
MBA
Category Information

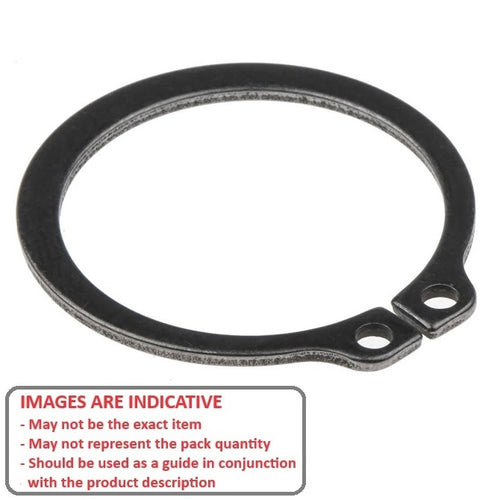

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
1.98
mm
+ 0.025 / - 0.076
(Equiv. 0.078 in.) - Groove Dia. (Dg)
23.88
mm
+/- 0.076
(Equiv. 0.94 in.) - Approx. Loose Circlip ID (A) 23.01 mm
- Groove Width (W) 21.84 mm
- Clearance on Shaft (C1) 34.80 mm
- Clearance in Groove (C1) 33.27 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 2.36
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98585A121
- NoCor SHR-100
- N1460-0100
- N14600100
- SHR100
