CCE-02540-C - Datasheet
MBA
Category Information

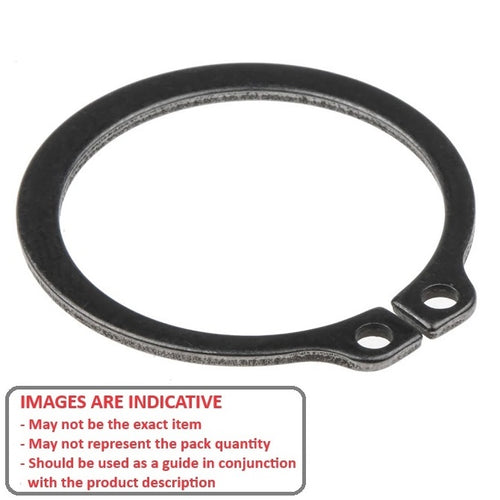

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
25.40
mm
(Equiv. 1 in.) - Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.) - Groove Dia. (Dg)
23.88
mm
+/- 0.051
(Equiv. 0.94 in.) - Approx. Loose Circlip ID (A) 23.50 mm
- Groove Width (W) 1.17 mm
- Clearance on Shaft (C1) 35.81 mm
- Clearance in Groove (C1) 34.29 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 2.39
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A300
- NoCor SH-100
- N1400-0100
- N14000100
- SH100
- A9Q27-100
- A9Q27100
