ES-2540-1778-34-M - Datasheet
MBA
Category Information
Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

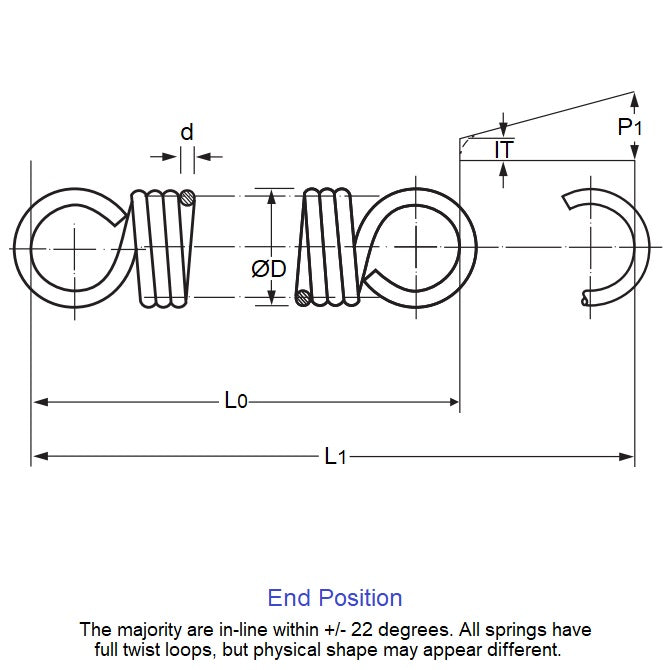

- OD (D0)
:
25.40
mm
(Equiv. 1 in.) - Approx. Overall Length (L0)
177.8
mm
(Equiv. 7 in.) - Wire Diameter (d)
3.43
mm
(Equiv. 0.135 in.) - Load at L1 310.93 N
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- Century C-269
- C269
