BP0175-0254-0318-DP - Datasheet
MBA
Category Information

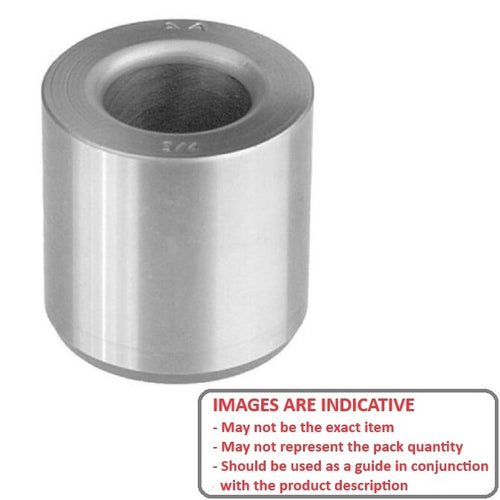

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
25.400
mm
+ 0.003 / + 0.0152
(Equiv. 1 in.) - Drill Size
17.463
mm
+ 0.038 / + 0.046
(Equiv. 0.688 in.) - Length
31.750
mm
(Equiv. 1.25 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8491A754
- BP43110
- BP-43110
