BP0159-0254-0318-DP - Datasheet
MBA
Category Information

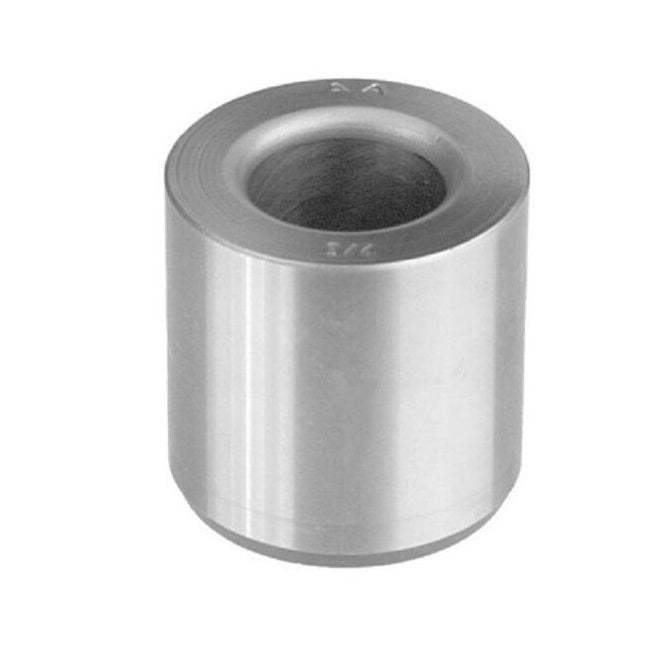

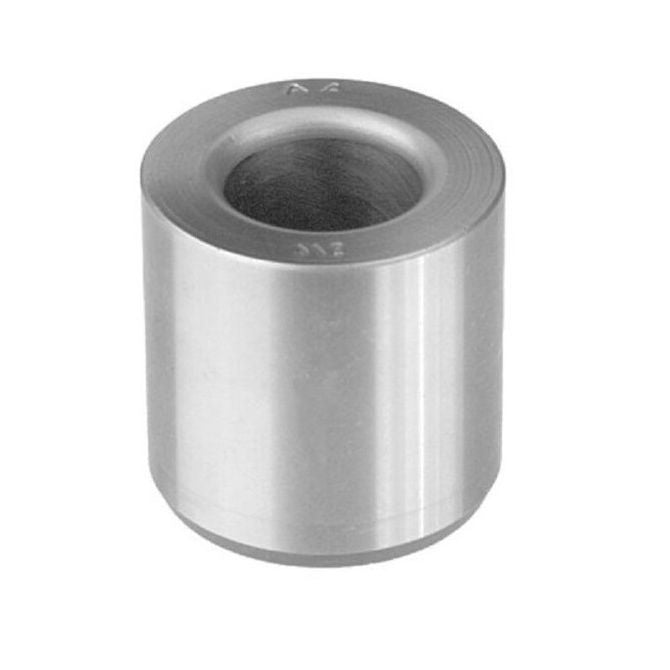

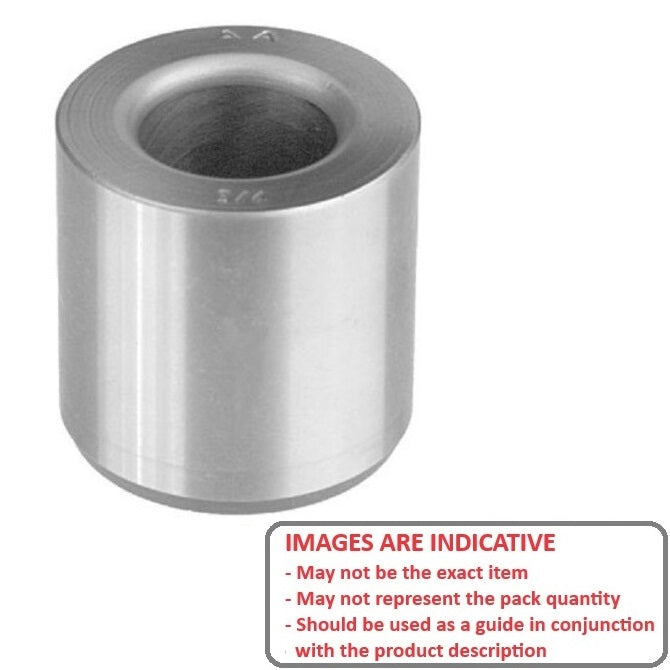

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

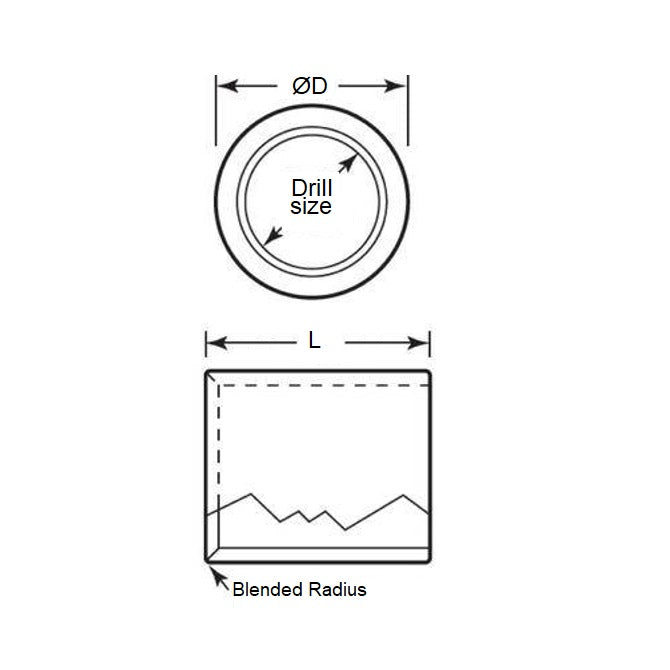

- Outside Diameter (OD)
:
25.400
mm
+ 0.003 / + 0.0152
(Equiv. 1 in.) - Drill Size
15.875
mm
+ 0.038 / + 0.046
(Equiv. 0.625 in.) - Length
31.750
mm
(Equiv. 1.25 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- BP43100
- BP-43100
