LCHP-0254-114-TSS - Datasheet

MBA

Product Data

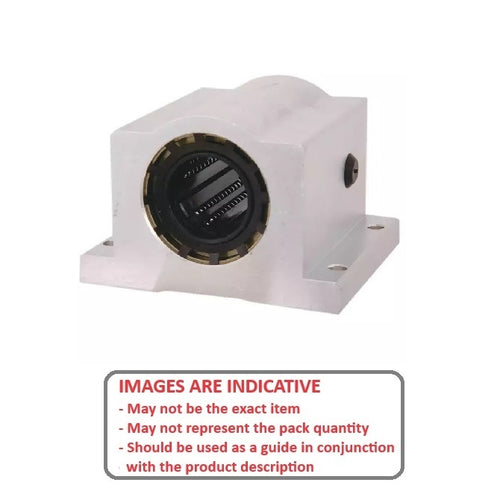

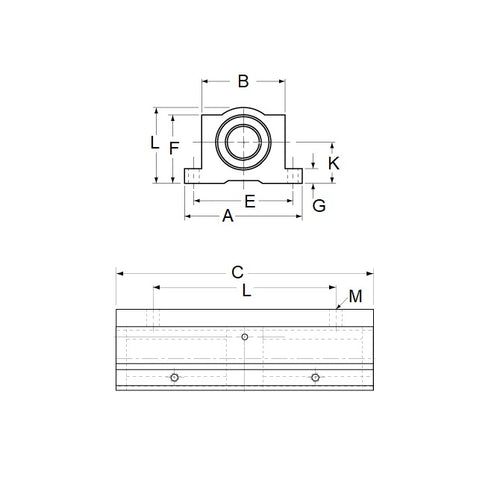

• Nominal Diameter : 25.400 mm
  (Equiv. 1 in.)
• Overall Length (C) 82.550 mm
  (Equiv. 3.25 in.)
• Height (B) 60.452 mm
  (Equiv. 2.38 in.)
• Width (A) 152.400 mm
• Bolt Centres (D) 82.550 mm
• Bolt Width (E) 73.025 mm
• Height (F) 49.276 mm
• Flange Thickness (G) 9.652 mm
• Hole Diameter (J) 5.588 mm
• Centre Height (K) 30.150 mm
• Overall Height (L) 55.626 mm
• Dynamic Load Capacity 1723.650 kgf
