IP-106RS - Datasheet

MBA

Category Information

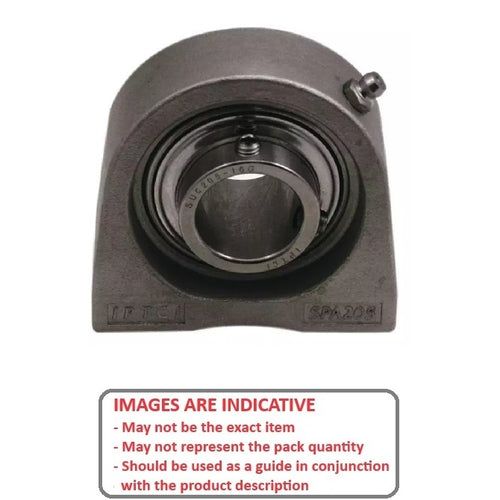

Housing and Bearing Assembly - Tapped Base - Stainless

Stainless Tapped Base Housing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.

  • Operating temperature minus 20 oC to +120 deg C
  • Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
  • These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
  • Bearings are removable.
  • Food grade

Product Data

  • Bore : 25.400 mm
    (Equiv. 1 in.)
  • Centre Height (A) 36.500 mm
    (Equiv. 1.437 in.)
  • Width (B) 76.200 mm
    (Equiv. 3 in.)
  • Depth (C) 38.100 mm
  • Bolt Depth (D) 12.700 mm
  • Bolt Distances (E) 76.200 mm
  • Thread (G) 3/8-16 UNC (9.53mm)
  • K 34.000 mm
  • L 19.700 mm
Country of Origin: US
