LOHP-0254-152-TSS - Datasheet

MBA

Product Data

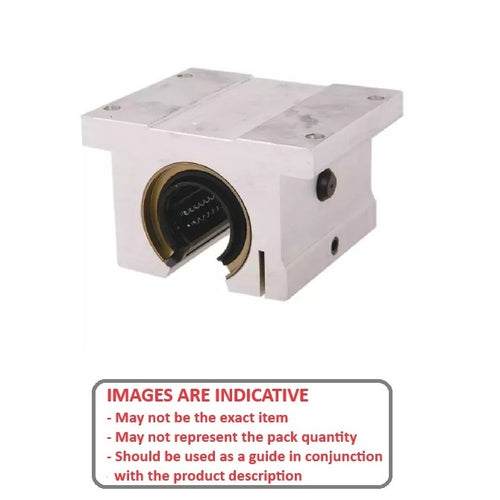

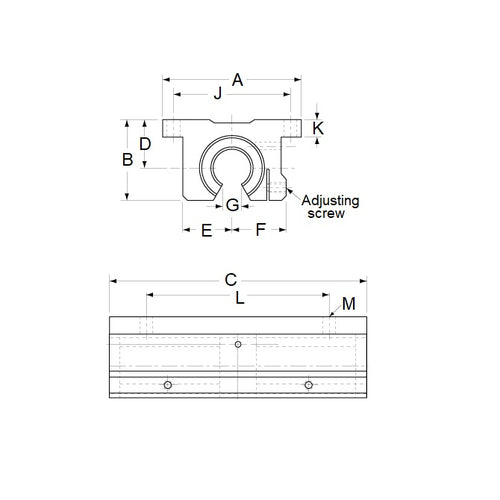

• Nominal Diameter : 25.400 mm
  (Equiv. 1 in.)
• Overall Length (C) 152.400 mm
  (Equiv. 6 in.)
• Height (B) 50.800 mm
  (Equiv. 2 in.)
• Width (A) 82.550 mm
• Centre Height (D) 30.150 mm
• Centre Width (E) 30.226 mm
• Centre Width (F) 31.750 mm
• Opening Distance (G) 13.462 mm
• Bolt Centres (J x L) 73.025 x 44.450 mm
• Dynamic Load Capacity 862 kgf
• Bolt Hole (M) 5.588 mm
• Flange Thickness (K) 9.652 mm
