LCSQCL-0254-F - Datasheet
MBA
Category Information

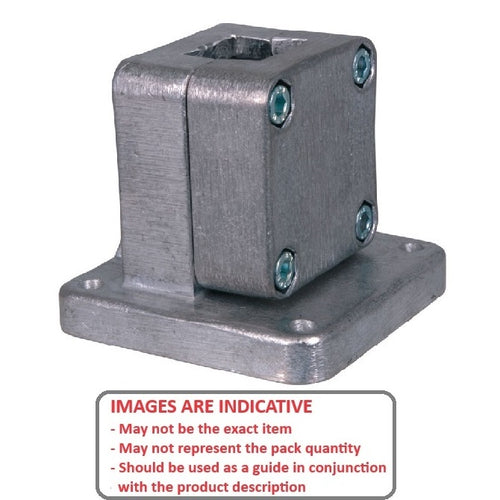

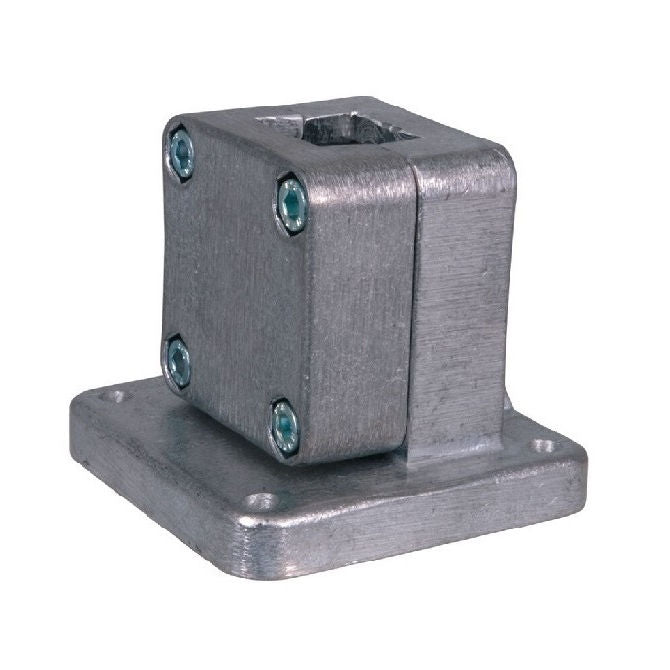

Linear - Housing Clamps SquareHousing Clamps Square Linear. Square Housing Clamps for Square Linear Shafting.
Product Data

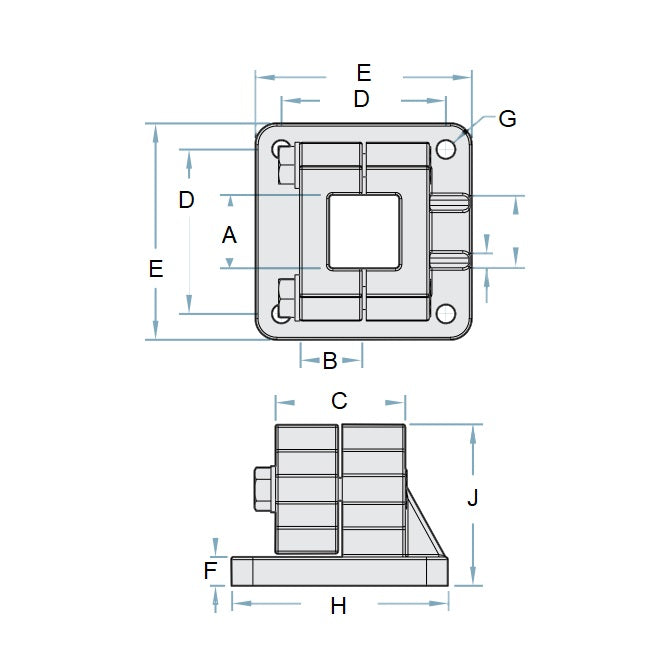

- Suitable Shaft Diameter
:
25.40
mm
(Equiv. 1 in.) - Type Flanged Base
- B
24.99
mm
(Equiv. 0.984 in.) - C 48.01 mm
- D 59.99 mm
- E 64.01 mm
- F 11.99 mm
- G 6.50 mm
- H 81.99 mm
- J 73.03 mm
Product Compliance and Data
Additional Resources
Cross References
- 60255K32
- PBC500
- PBC-500
