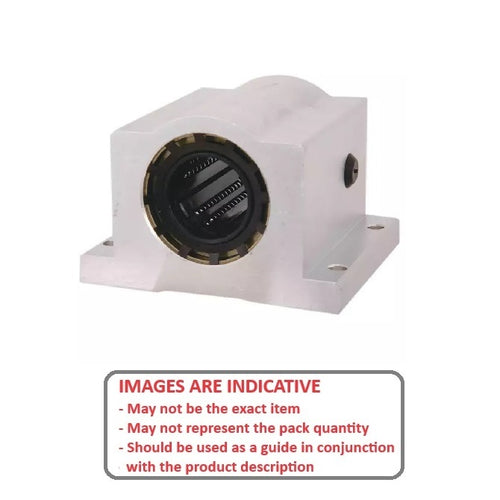

LCHP-0254-071-TSS - Datasheet

MBA

Product Data

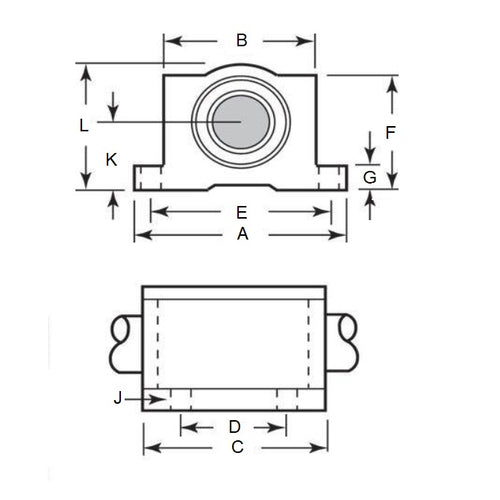

• Nominal Diameter : 25.40 mm
  (Equiv. 1 in.)
• Widths (A x A2) 82.550 x 60.452 mm
  (Equiv. 3.25 in.)
• Length (B) 71.37 mm
  (Equiv. 2.81 in.)
• Bolt Distances (E x E1) 44.450 x 73.025 mm
• Height (H x H1) 30.150 x 55.626 mm
• Flange Height (F1) 9.65 mm
• Lube Hole Distance (G1 x G) 30.226 x 32.258 mm
• Bolt Dia. 5.59 mm
• Weight 0.56 Kg
• Dynamic Load Capacity 848 kgf

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• QBC TSS6UPB-16
• TLM965
• TLM-965
• TSS6UPB16
