CLP-254-1905-CZ-HPC - Datasheet

MBA

Category Information

Pins - Clevis - Handle - Straight - Pin Locking - Powder Coated

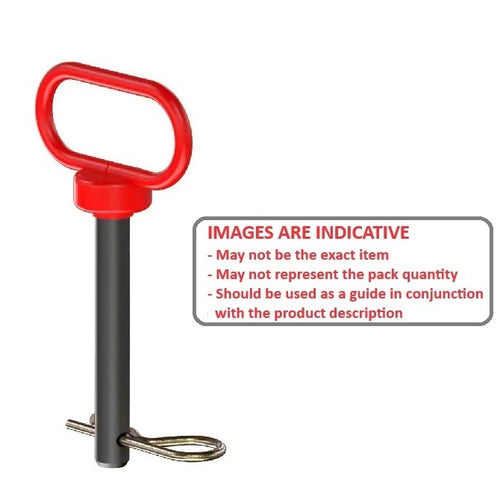

Powder Coated Pin Locking Straight Handle Clevis Pins. Also known as Hitch Pins. Heat treated high tensile.

  • Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
  • A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
  • Includes zinc plated R-Clip

Product Data

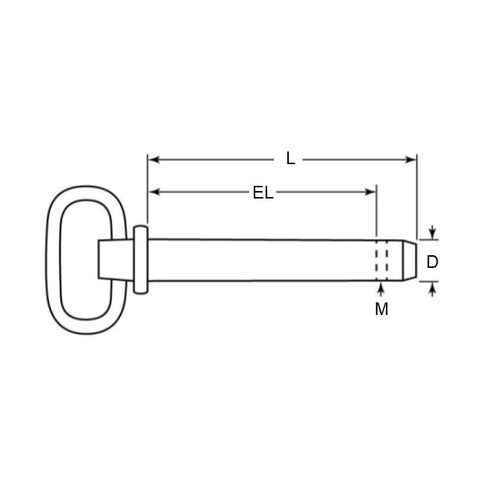

  • Nominal Pin Diameter (D) : 25.40 mm - 0.10 / - 0.35
    (Equiv. 1 in.)
  • Grip Length (EL) 190.50 mm + 0.51 / - 0.00
    (Equiv. 7.5 in.)
  • Pin Finish Zinc Plated
  • Handle Finish Powder Coated
  • Handle Material Red Vinyl
  • Material High Tensile Steel Heat Treated
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • CLP2541905ZHPC
  • WMG30
  • WMG-30
