ACE1600MRS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

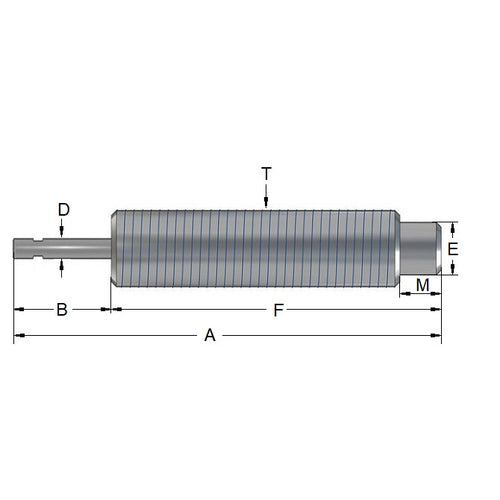

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (T) M25x1.5
    • Length (A/F) 141.80 / 103.10 mm
      (Equiv. 5.583 in.)
    • Shaft Diameter (D) 7.90 mm
    • Effective Weight 9.07 - 13.61 KG
    • Wrench Flat (EE) 9.60 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-1600M
      • ACE1600M
      View full details

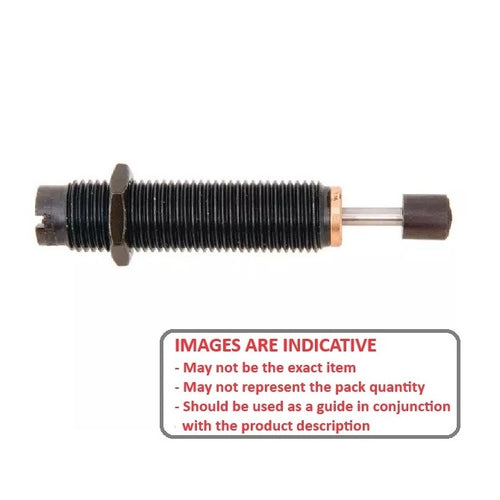

      ACE1600MRSDiagramACE1600MRSImage
