WMG410RS - Datasheet

MBA

Category Information

Pins - Hydraulic Cylinder

Hydraulic Cylinder Pins. This is the main category in this series

    Product Data

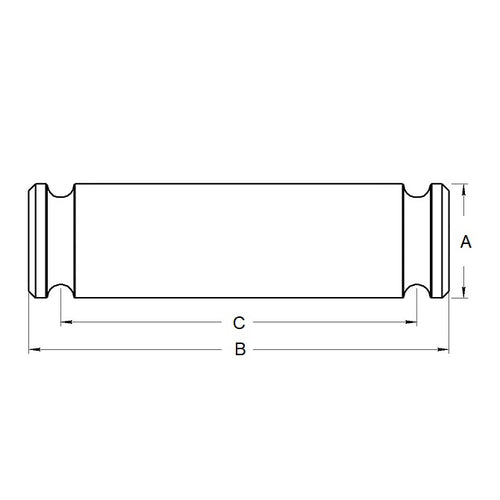

    • Pin Diameter (A) : 25.400 mm
      (Equiv. 1 in.)
    • Overall Length (B) 88.900 mm
      (Equiv. 3.5 in.)
    • Groove Distance (C) 73.025 mm
      (Equiv. 2.875 in.)
    • Material Steel C1144
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • WMG-410
    • WMG410
    View full details

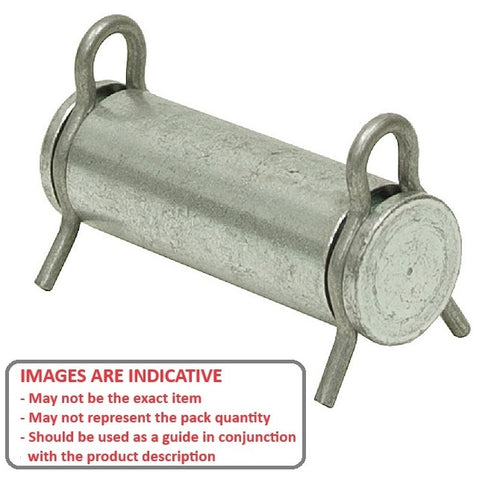

    WMG410RSDiagramWMG410RSImage
