WMG405RS - Datasheet

MBA

Category Information

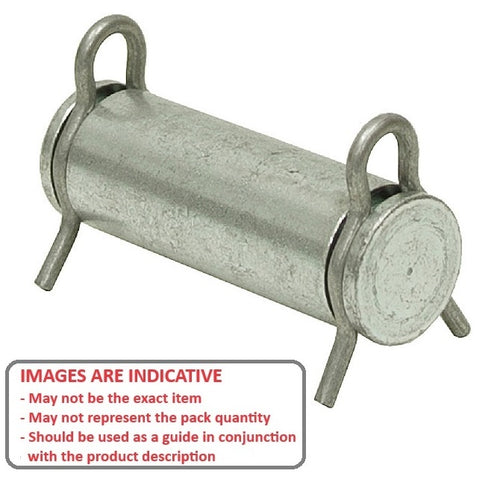

Pins - Hydraulic Cylinder

Hydraulic Cylinder Pins. This is the main category in this series

    Product Data

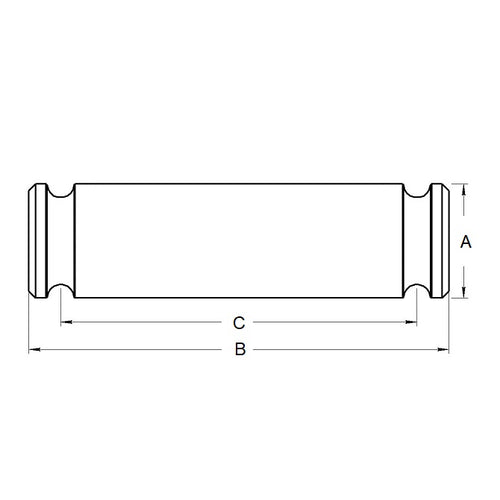

    • Pin Diameter (A) : 25.400 mm
      (Equiv. 1 in.)
    • Overall Length (B) 73.025 mm
      (Equiv. 2.875 in.)
    • Groove Distance (C) 57.150 mm
      (Equiv. 2.25 in.)
    • Material Steel C1144
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • WMG-405
    • WMG405
