LCHF-0254-135-TS - Datasheet

MBA

Product Data

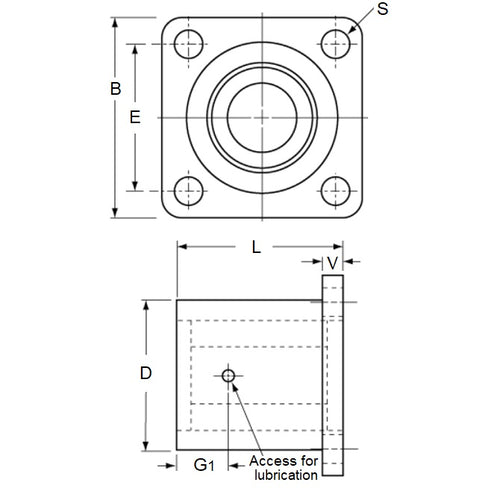

• Nominal Diameter : 25.40 mm
  (Equiv. 1 in.)
• Flange Length and Width (B) 69.85 mm
  (Equiv. 2.75 in.)
• Bolt Distance and Dia. (S x E) 5/16-18 x 54.0 mm
  (Equiv. 0.197 in.)
• Length (L) 135.38 mm
• Width (D) 57.15 mm
• Flange Height (V) 22.86 mm
• Lube Hole Distance (G1) 67.82 mm
• Type Twin
• Dynamic Load Capacity 1696 kgf
