LCSQ-0254-102-2 - Datasheet
MBA
Category Information

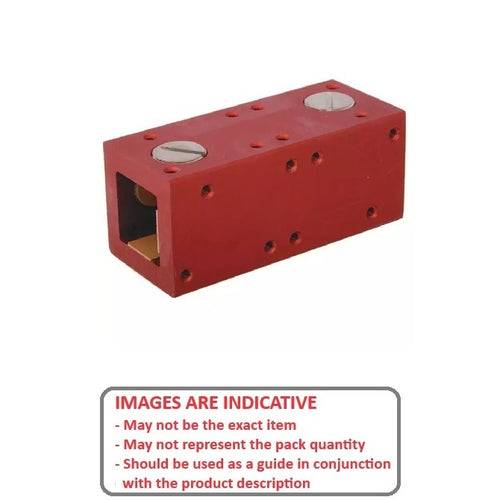

Linear - Square HousingsSquare Housings Linear. Used to maintain radial integrity and eliminate the need for parallel shafting.
- Bearings are made from 6061-T6 Aluminum with Anodized finished.
- Equipped with bearing plugs that run on a single shaft.
- Threaded adjustable plugs are made from 316 Stainless with self-lubricating FrelonJ wear pads.

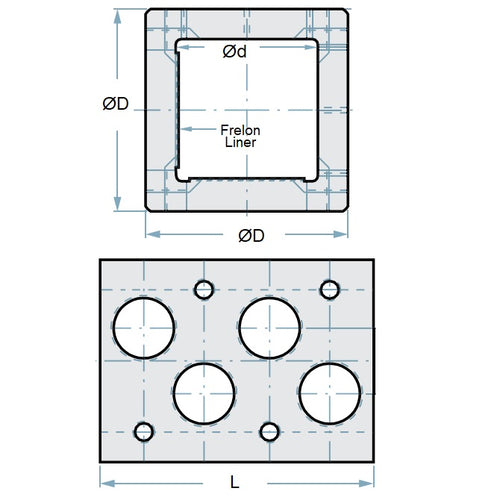

Product Data
- Suitable Shaft Diameter
:
25.40
mm
(Equiv. 1 in.) - Outside Diameter
44.45
mm
(Equiv. 1.75 in.) - No. Of Adjustable Sides. Two Sided
- Length 101.60 mm
- Load Capacity 417.30 kg
Product Compliance and Data
Additional Resources
Cross References
- 60255K52
- PBC415
- PBC-415
