IP-105RS - Datasheet
MBA
Category Information

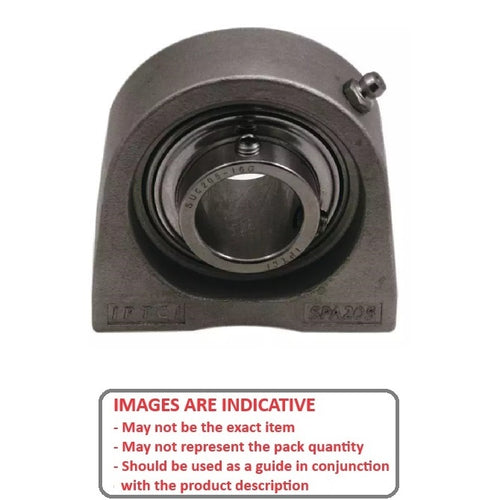

Housing and Bearing Assembly - Tapped Base - StainlessStainless Tapped Base Housing Assembly. Full stainless steel bearing units are the best solution for hostile chemical washdown applications. All metal bearing insert components are a combination of 302, 304 and 440 stainless steel. Seals are silicone rubber. Grease is H-1 food grade.
- Operating temperature minus 20 oC to +120 deg C
- Solid 304 stainless housings have a machined base and extremely smooth surface finish, essential for demanding washdown installations.
- These housings do not experience flaking, cracking or discolouration and are virtually unaffected by scrapes.
- Bearings are removable.
- Food grade
Product Data
- Bore
:
25.000
mm
(Equiv. 0.984 in.) - Centre Height (A)
36.500
mm
(Equiv. 1.437 in.) - Width (B)
76.000
mm
(Equiv. 2.992 in.) - Depth (C) 38.000 mm
- Bolt Depth (D) 13.000 mm
- Bolt Distances (E) 76.200 mm
- Thread (G) UNC
- K 34.000 mm
- L 19.700 mm
