HXCW25-8-3 - Datasheet

MBA

Category Information

Magnets - Ring - Boron

Boron Ring Magnets. This is the main category in this series

    Product Data

    • Diameter : 25.00 mm
      (Equiv. 0.984 in.)
    • ID 3.00 mm
      (Equiv. 0.118 in.)
    • Length 8.00 mm
      (Equiv. 0.315 in.)
    • Surface Treatment Nickel Plating
    • Heat resistant Temp 58.80 Deg C
    • Material Neodymium Iron Boron
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Misumi HXCW25-8-3
      • HXCW2583
      View full details

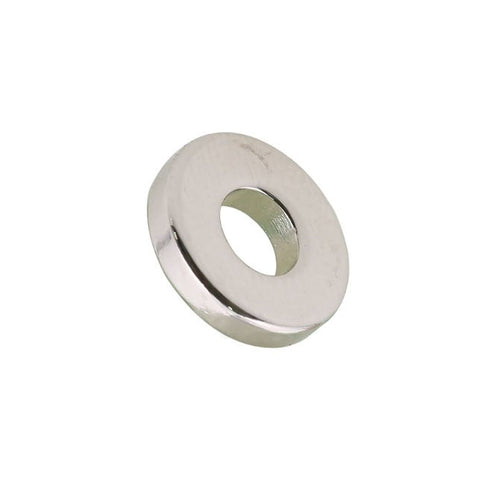

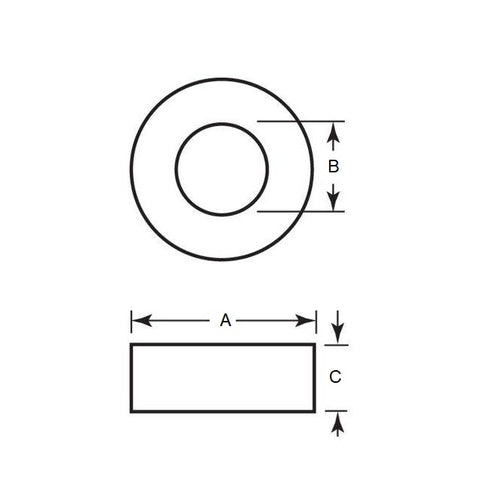

      HXCW25-8-3DiagramHXCW25-8-3Image
