Miniature Bearings Australia
HXCW25-10-3 - Datasheet
MBA
Category Information
Magnets - Ring - BoronBoron Ring Magnets. This is the main category in this series
Product Data

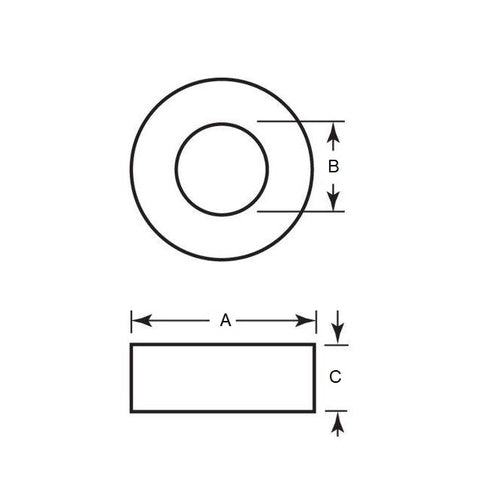

- Diameter
:
25.00
mm
(Equiv. 0.984 in.) - ID
3.00
mm
(Equiv. 0.118 in.) - Length
10.00
mm
(Equiv. 0.394 in.) - Surface Treatment Nickel Plating
- Heat resistant Temp 58.80 Deg C
- Material Neodymium Iron Boron
Product Compliance and Data
Additional Resources
Cross References
- Misumi HXCW25-10-3
- HXCW25103
