CCE-02499H-C - Datasheet
MBA
Category Information

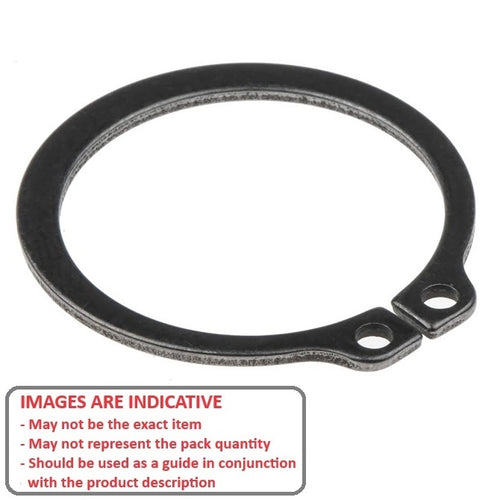

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
24.99
mm
(Equiv. 0.984 in.) - Clip Thickness (T)
1.98
mm
+ 0.025 / - 0.076
(Equiv. 0.078 in.) - Groove Dia. (Dg)
23.52
mm
+/- 0.076
(Equiv. 0.926 in.) - Approx. Loose Circlip ID (A) 23.01 mm
- Groove Width (W) 21.84 mm
- Clearance on Shaft (C1) 34.54 mm
- Clearance in Groove (C1) 33.02 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 2.29
- Standard MIL-3217
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHR-098
- N1460-0098APP
- N14600098
- N14600098APP
- SHR098
