CSC-238-016-11-M - Datasheet
MBA
Category Information

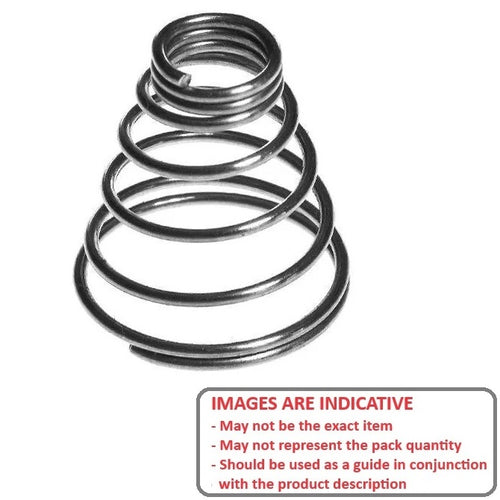

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data

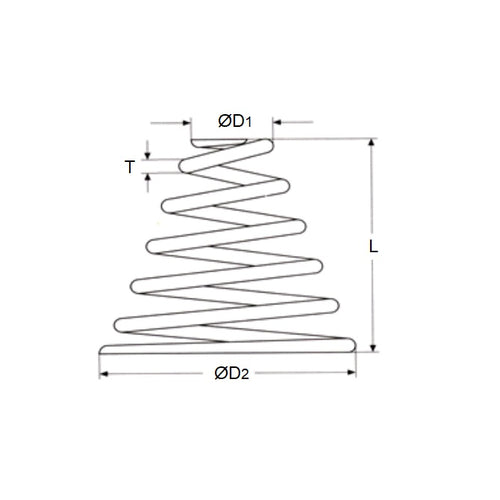

- Large End OD
:
23.80
mm
(Equiv. 0.937 in.) - Free Length
15.9
mm
(Equiv. 0.626 in.) - Small End OD
15.1
mm
(Equiv. 0.594 in.) - Inside Diameter Clearance 12.8 mm
- Wire Thickness 1.14 mm
- Rate 0.1 kg/mm
- Inside Diameter 12.8 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-40
- CX40
