AD12280AD - Datasheet
MBA
Category Information

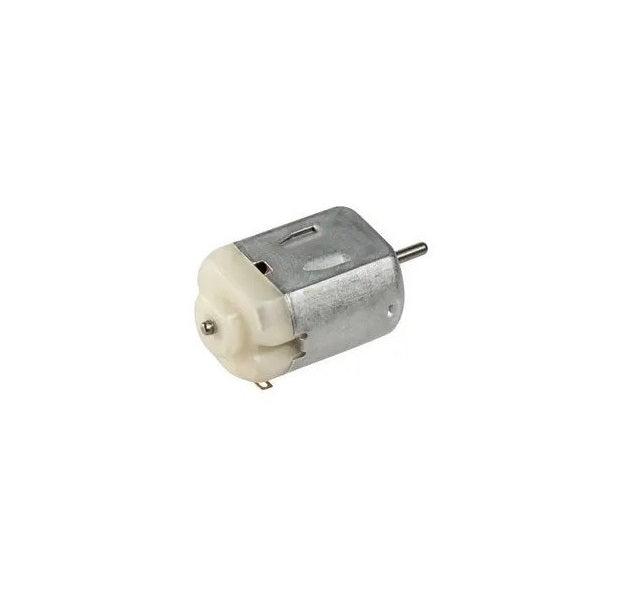

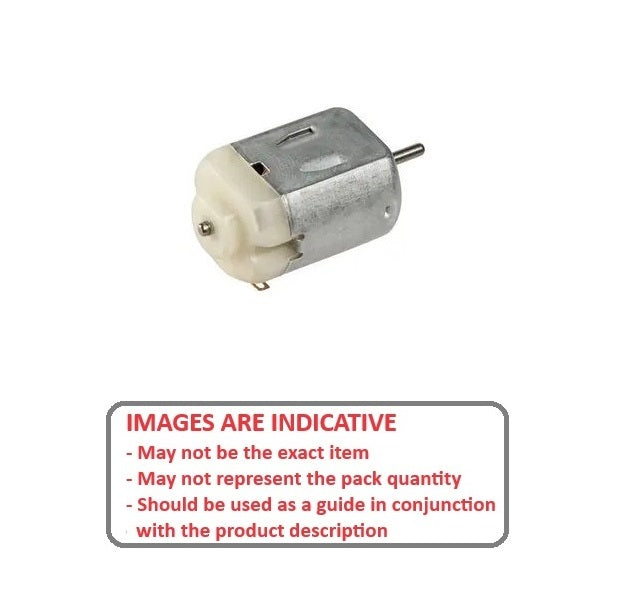

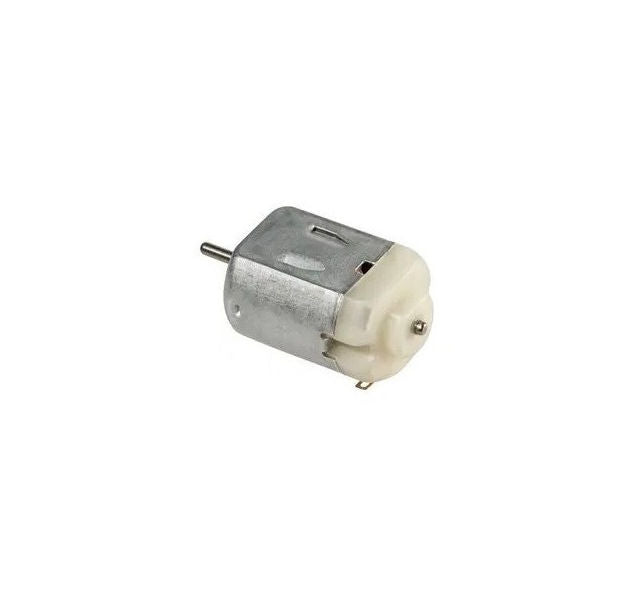

Motors - DC - 23.8X30.6 mm23.8X30.6 mm DC Motors. 12 VDC - 12,300 RPM unloaded at 4.5 volts
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Body Diameter
:
23.8
mm
(Equiv. 0.937 in.) - Overall Length
30.6
mm
(Equiv. 1.205 in.) - Operating Voltage 6.0-24 V
- Nominal Voltage 12.0 V
- Shaft Size 2 mm
- Body Type rounded with flat top and bottom
- Current (No Load/Max Effic) 0.04/0.19 amps
- Speed (No Load) 7200 RPM
- Speed (Max Efficiency) 6210 RPM
- Direction Reversable
- Torque (Max Effic) 268 g-cm
