CSP-024-17-064C - Datasheet
MBA
Category Information

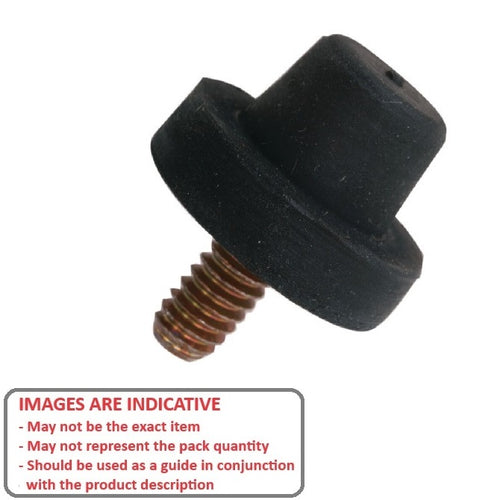

Mounts - Buffer - Special PurposeSpecial Purpose Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Natural rubber with bonded in studs. 50 Durometer hardness. Use up to 65 Degrees C (150 Deg F).

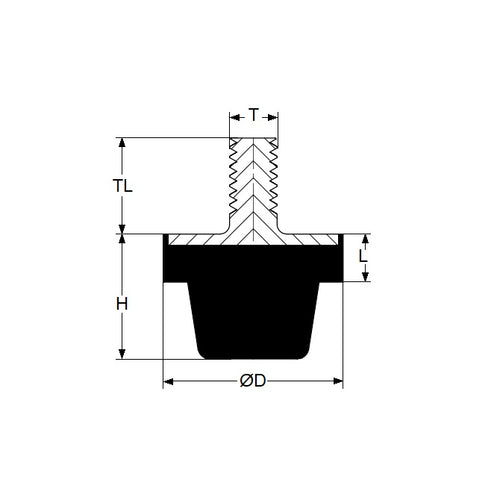

Product Data
- Nom. Body Diameter (D)
:
23.8
mm
(Equiv. 0.937 in.) - Body Length (H)
16.5
mm
(Equiv. 0.65 in.) - Thread Size 1/4 UNC (20 TPI)
- Shore Hardness 60
- Thread Length (L1) 12.7 mm
- Configuration Male to Blank Special
- Lip Thickness 6 mm
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- VM1711
- VM-171-1
