ACE116RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Low Velocity Adjustable

Low Velocity Adjustable Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 23.11 mm
      (Equiv. 0.91 in.)
    • Thread (T) 1.3/8-12 UNF (34.93mm)
    • Length (A) 138.18 mm
      (Equiv. 5.44 in.)
    • Shaft Diameter (D) 9.53 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE116
      • ACE-116
      View full details

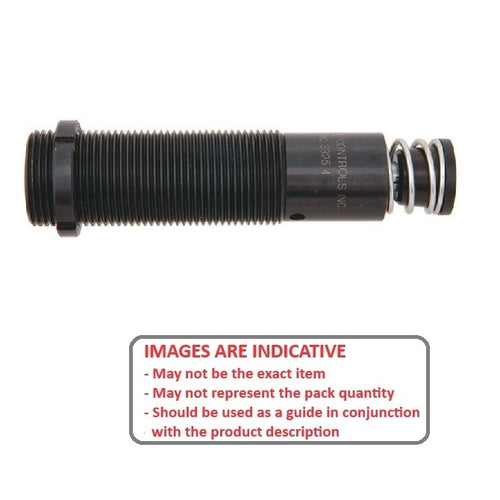

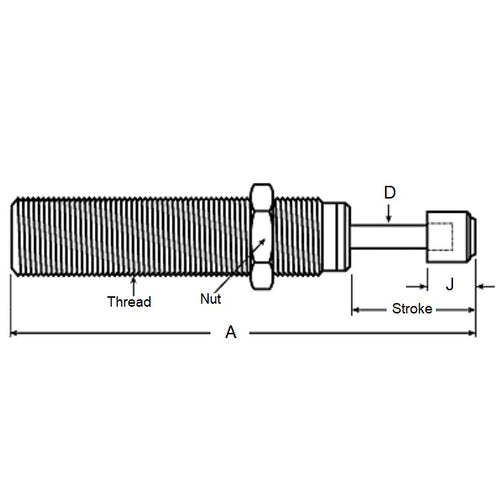

      ACE116RSDiagramACE116RSImage
