ACE45252RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 23.11 mm
      (Equiv. 0.91 in.)
    • Thread (T) 1.3/4-12
    • Length (A) 144.53 mm
      (Equiv. 5.69 in.)
    • Shaft Diameter (D) 12.70 mm
    • Effective Weight 77.11 - 308.44 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE45252
      • ACE-4525-2
      View full details

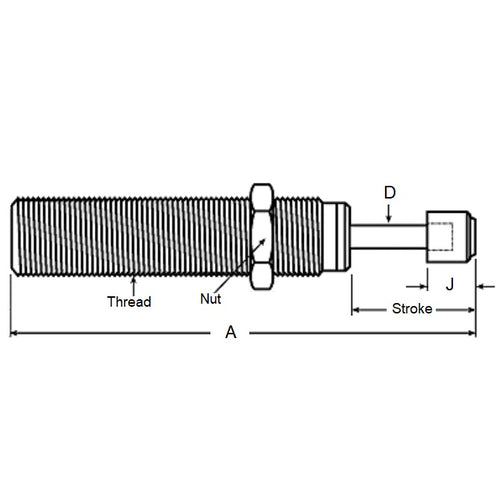

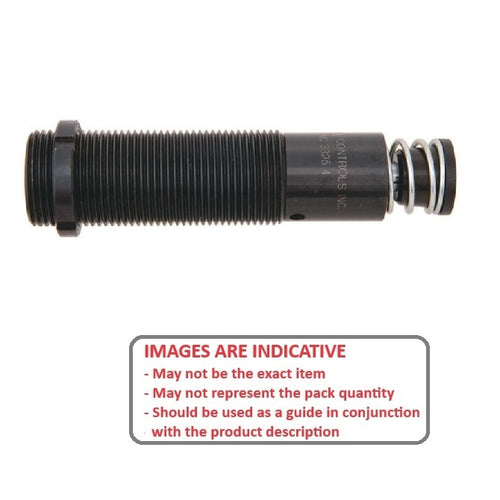

      ACE45252RSDiagramACE45252RSImage
