ACE45251RS - Datasheet
ACE
Category Information

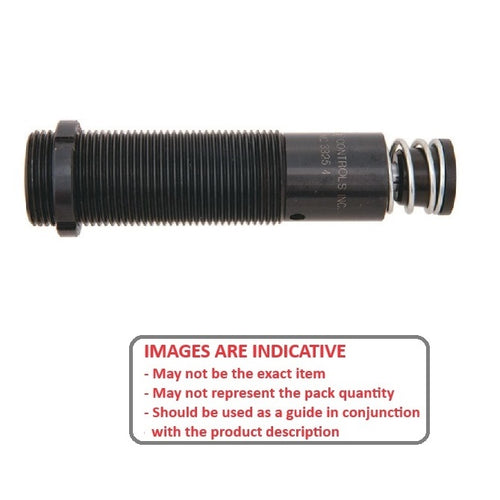

Shock Absorbers - Full Threaded - Soft Contact Self-CompensatingSoft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

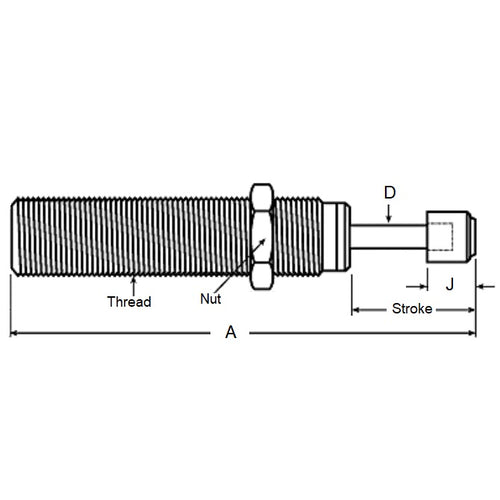

Product Data
- Stroke
:
23.11
mm
(Equiv. 0.91 in.) - Thread (T) 1.3/4-12
- Length (A)
144.53
mm
(Equiv. 5.69 in.) - Shaft Diameter (D) 12.70 mm
- Effective Weight 22.68 - 90.72 KG
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE45251
- ACE-4525-1
