ACE33254RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 23.11 mm
      (Equiv. 0.91 in.)
    • Thread (T) 1.1/4-12 UNF (31.75mm)
    • Length (A) 138.18 mm
      (Equiv. 5.44 in.)
    • Shaft Diameter (D) 9.53 mm
    • Effective Weight 353.80 - 1415.21 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-3325-4
      • ACE33254
      View full details

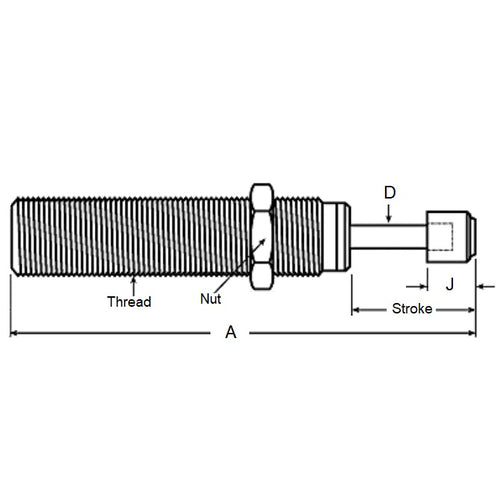

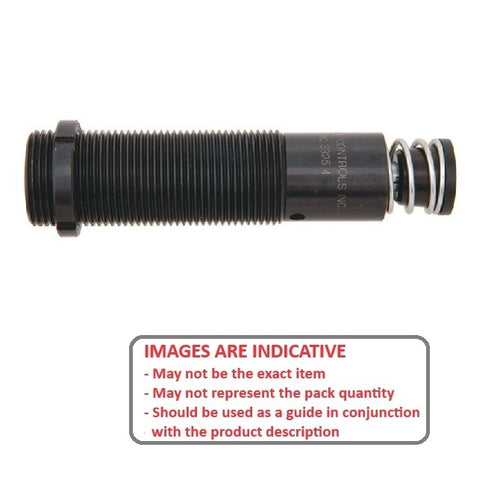

      ACE33254RSDiagramACE33254RSImage
