BP0140-0220-0280-DP - Datasheet
MBA
Category Information

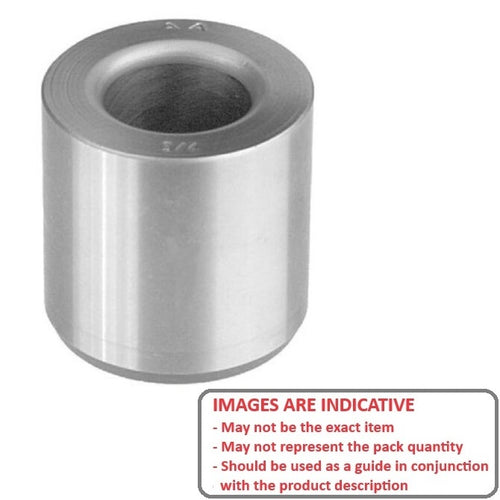

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

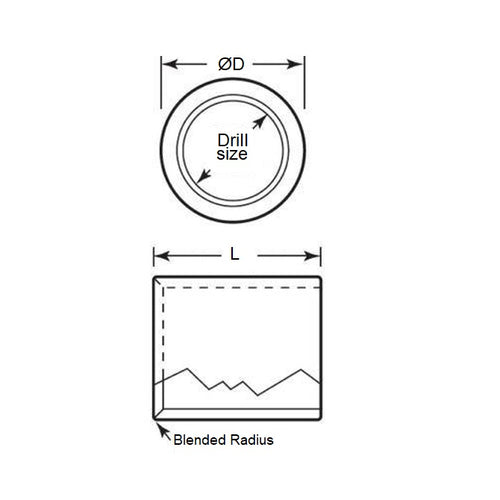

- Outside Diameter (OD)
:
22.000
mm
+ 0.035 / + 0.048
(Equiv. 0.866 in.) - Drill Size
14.000
mm
+ 0.006 / 0.017
(Equiv. 0.551 in.) - Length
28.000
mm
(Equiv. 1.102 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8486A59
- DM-14028
- DM14028
