Miniature Bearings Australia
NRV-0225-060-W-ZZ - Datasheet
MBA
Category Information

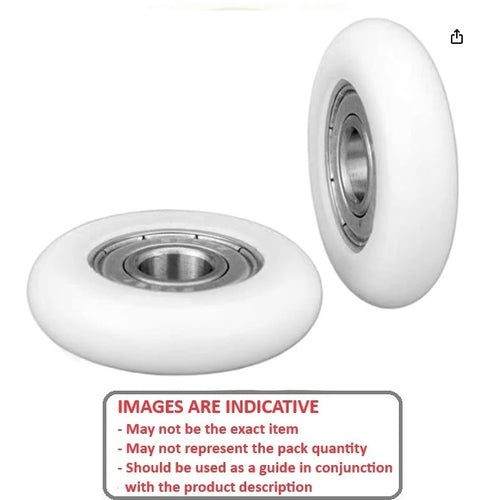

Rollers - Nylon Tyre Through Bore ConvexNylon Tyre Through Bore Convex Rollers. Nylon tyred rollers for cabinet doors, gym equipment etc. Commonly found in rowing machines.
Product Data

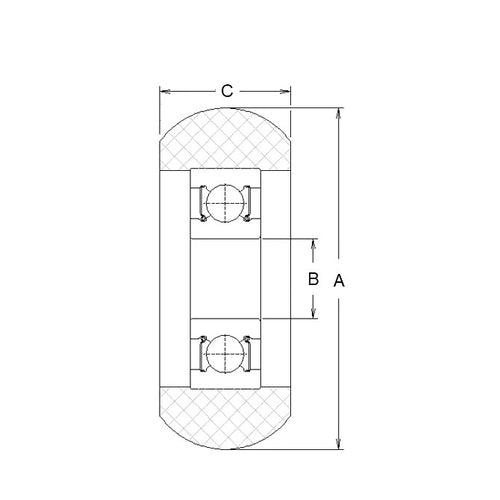

- Outside Diameter (A)
:
22.50
mm
+/- 0.2
(Equiv. 0.886 in.) - Inside Diameter (B)
6.00
mm
+ 0 / - 0.008
(Equiv. 0.236 in.) - Bearing Width (E)
6.00
mm
(Equiv. 0.236 in.) - Roller Width (C) 7.0 mm
- Weight 5.45 g
- Colour White
- Type No Extended Rings on Bearing
- Material Chrome Steel and Acetal
