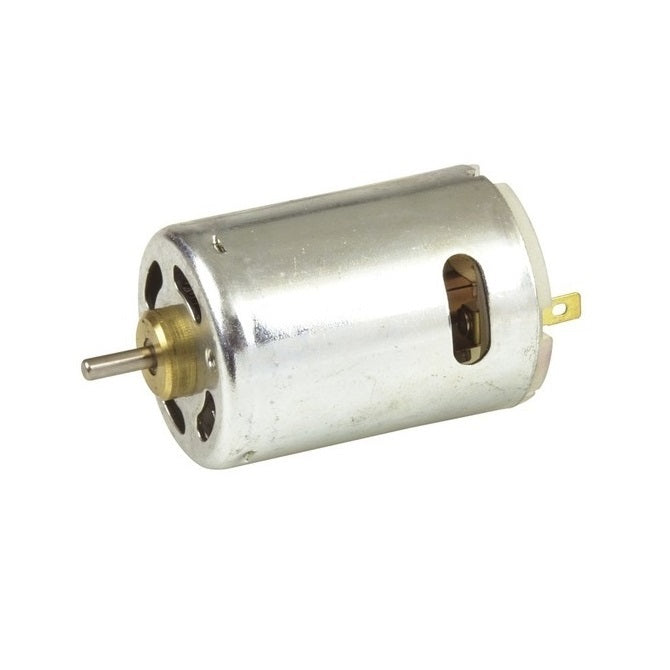

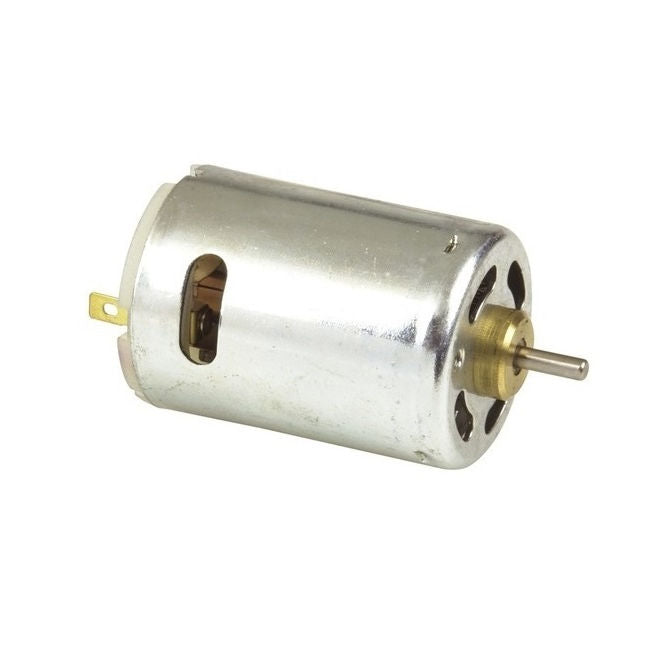

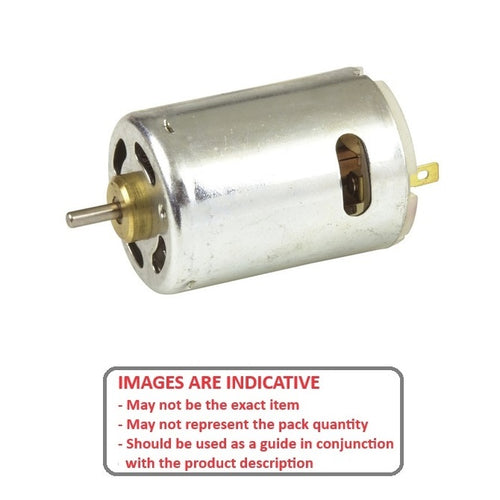

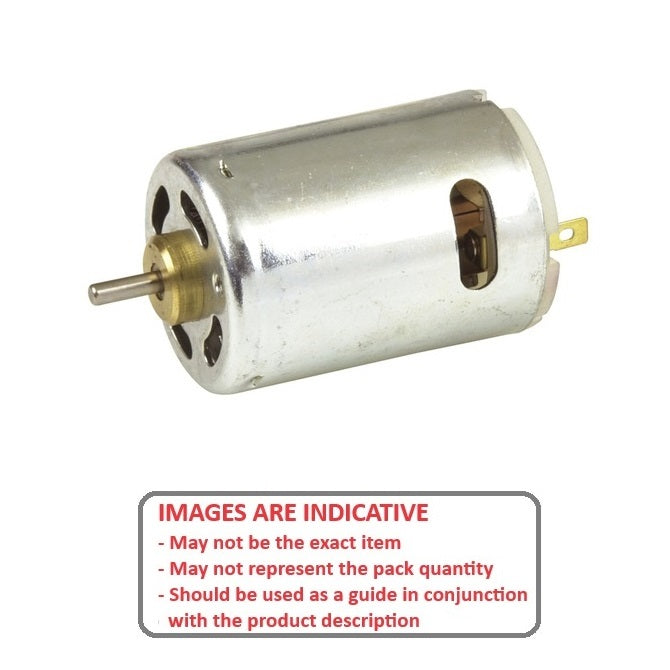

ADDCM4540AD - Datasheet
MBA
Category Information
Motors - DC - 22.4X38.0 mm22.4X38.0 mm DC Motors. This is the main category in this series
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Body Diameter
:
27.0
mm
(Equiv. 1.063 in.) - Overall Length
38.0
mm
(Equiv. 1.496 in.) - Operating Voltage 3.0-9.0 V
- Nominal Voltage 7.2 V
- Shaft Size 2.38 x 14mm
- Body Type Cylindrical
- Current (No Load/Max Effic) 0.62A/3.61A amps
- Speed (No Load) 18900 RPM
- Speed (Max Efficiency) 15886 RPM
- Direction Reversable
- Torque (Max Effic) 110 g-cm
- Torque (Stall) 690 g-cm
