CSC-222-035-08-M - Datasheet
MBA
Category Information

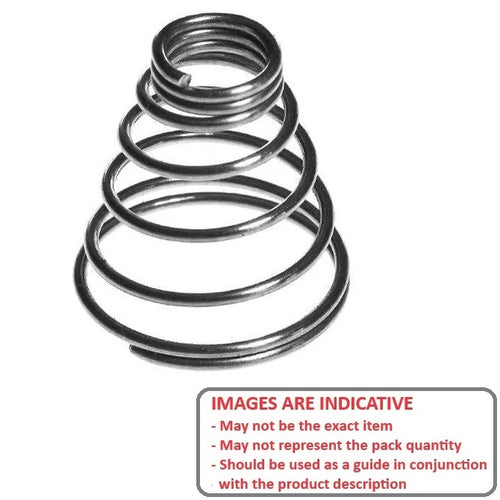

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate

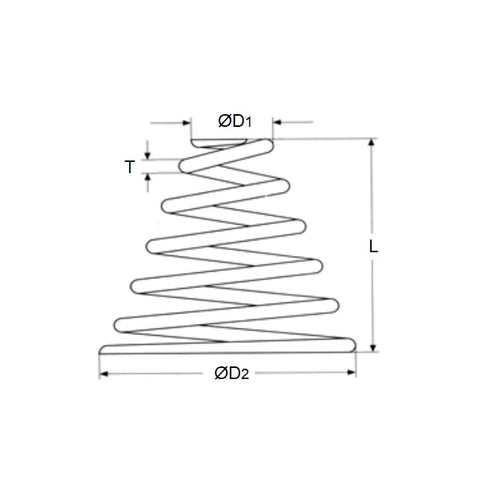

Product Data
- Large End OD
:
22.20
mm
(Equiv. 0.874 in.) - Free Length
34.9
mm
(Equiv. 1.374 in.) - Small End OD
9.5
mm
(Equiv. 0.374 in.) - Inside Diameter Clearance 7.9 mm
- Wire Thickness 0.81 mm
- Rate 0.0 kg/mm
- Inside Diameter 7.9 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-27
- CX27
