CCI-02223-S15 - Datasheet

MBA

Category Information

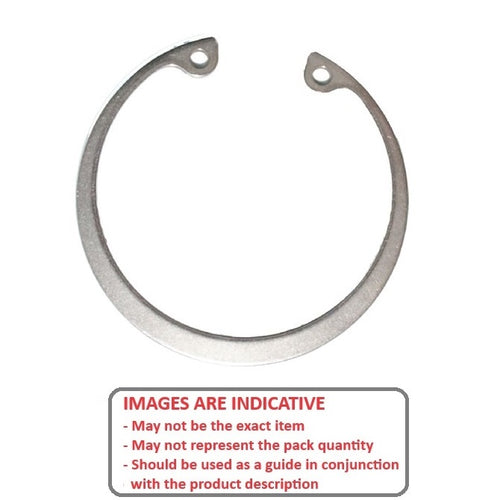

Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
PH15-7 Mo Stainless Steel.
Tolerances on request.

Product Data

Housing Bore (B) : 22.23 mm
(Equiv. 0.875 in.)
Clip Thickness (T) 1.07 mm _{+/- 0.075}
(Equiv. 0.042 in.)
Groove Dia. (Dg) 23.65 mm _{+ 0.00 / - 0.06}
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25
Groove Width (W) 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C) 13.97 mm
Clearance in Groove (C1) 15.24 mm
Min. Lug Diameter (h) 1.52 mm
Min. Extension (n) 2.13
Standard MIL-16625
Material Stainless Steel Grade PH15-7 Mo

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

91580A191
NoCor HO-087-SS
Small Parts RIX-14
HO087SS
RIX14
N13000087BDS
N1300-0087BDS
