CCE-02223-S15 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 22.23 mm
    (Equiv. 0.875 in.)
  • Clip Thickness (T) 1.07 mm +/- 0.076
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 20.85 mm +/- 0.051
    (Equiv. 0.821 in.)
  • Approx. Loose Circlip ID (A) 20.57 mm
  • Groove Width (W) 1.17 mm
  • Clearance in Groove (C1) 30.73 mm
  • Min. Lug Diameter (h) 1.93 mm
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91590A131
  • Small Parts REX-14
  • NoCor SH-087-SS
  • N14000087KSF
  • N1400-0087KSF
  • SH087SS
  • REX14
  • S73HW2-100-087
  • S73HW2100087
View full details

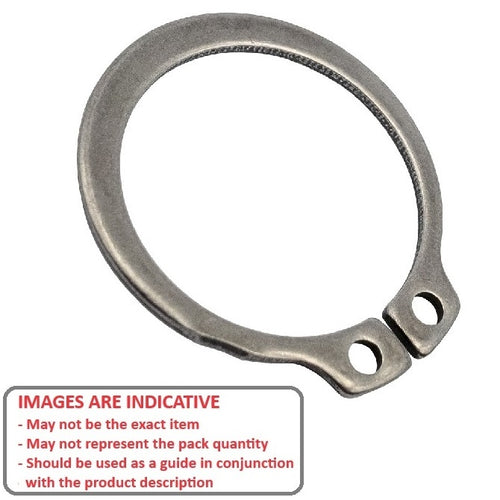

CCE-02223-S15DiagramCCE-02223-S15Image
