BP0222-0286-0191-PRJ - Datasheet
MBA
Category Information

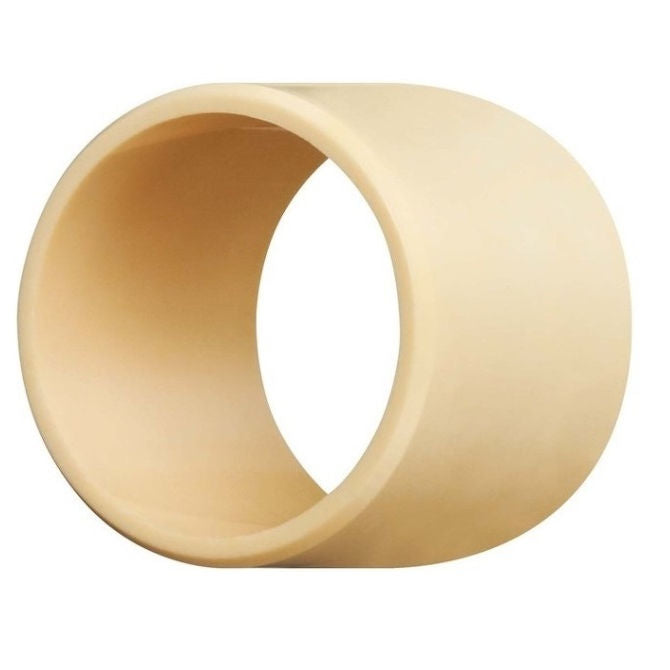

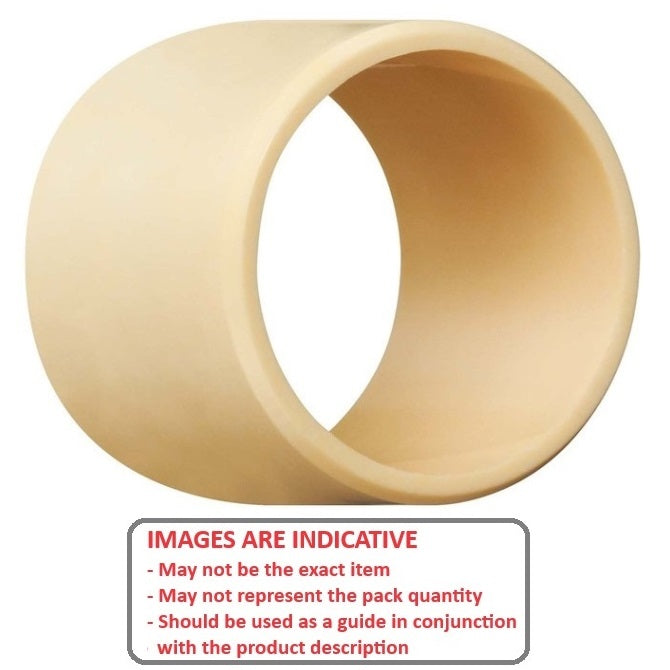

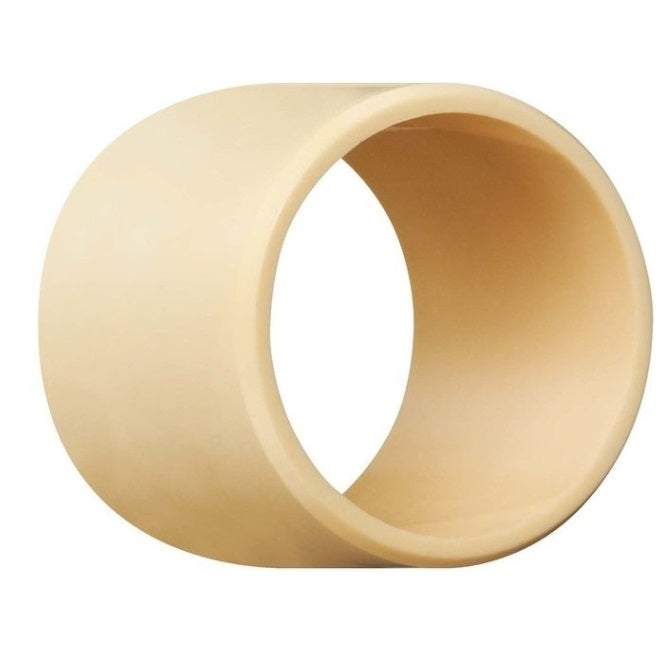

Bushes - Unflanged - Plastic - Rulon JRulon J Plastic Unflanged Bushes. Max Load: 5.2 MPa (750 psi). Gold colour. Max surface speed: 2m/s. Max PV: 0.26 (Mpa x m/s)
- An expanded range may be available on special order. Please enquire.
- Non Metallic Bushes. Excellent insulator. Nor suitable for steam or wet conditions. Not FDA compliant. Suitable for dry conditions or vacuum.
- 288 oC (550 Deg F) Maximum Working Temperature.
- Patented all polymeric PTFE compound which operates well against soft mating surfaces.
- Lowest co-efficient of friction in the Rulon(R) product range.
Product Data

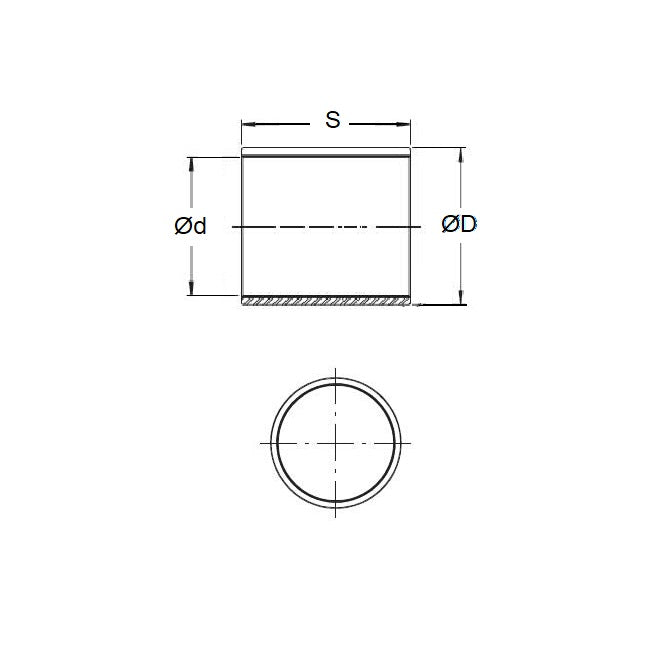

- Nominal Inside Diameter (d)
:
22.225
mm
+ 0.20 / + 0.25
(Equiv. 0.875 in.) - Nominal Outside Diameter (D)
28.575
mm
+ 0.09 / + 0.14
(Equiv. 1.125 in.) - Length (s)
19.050
mm
+ 0.00 / - 0.25
(Equiv. 0.75 in.) - Rec. Housing Bore 28.575 / 28.550 mm
- Rec. Shaft Size 22.225 / 22.200
- Material Rulon J
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 6377K43
- Rulon DRJS-1418-6-J
- Small Parts SBP-14-12
- DRJS14186J
- SBP1412
