ED10BRS - Datasheet

ACE

Category Information

Shock Absorbers - Hydraulic - Self-Compensating

Self-Compensating Hydraulic Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 22.1 mm
      (Equiv. 0.87 in.)
    • Thread (C) 3/4-16 UNF
    • Length (A/F) 130.30 / 95.50 mm
      (Equiv. 5.13 in.)
    • Shaft Diameter (D) 5 mm
    • Bore 11 mm
    • Max. Shock Force 386 KG
    • Max. Propelling Force 163 KG
    • Nom. Coil Spring Force Exten 1 KG
    • Nom. Coil Spring Force Compres 3 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED10B
      • ED-10B
      View full details

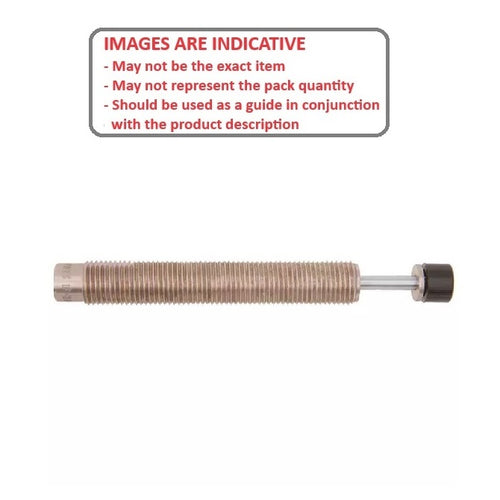

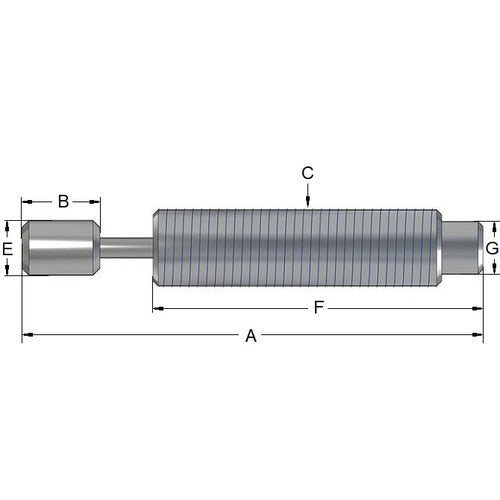

      ED10BRSDiagramED10BRSImage
