Miniature Bearings Australia
CCE-02100-C - Datasheet
MBA
Category Information

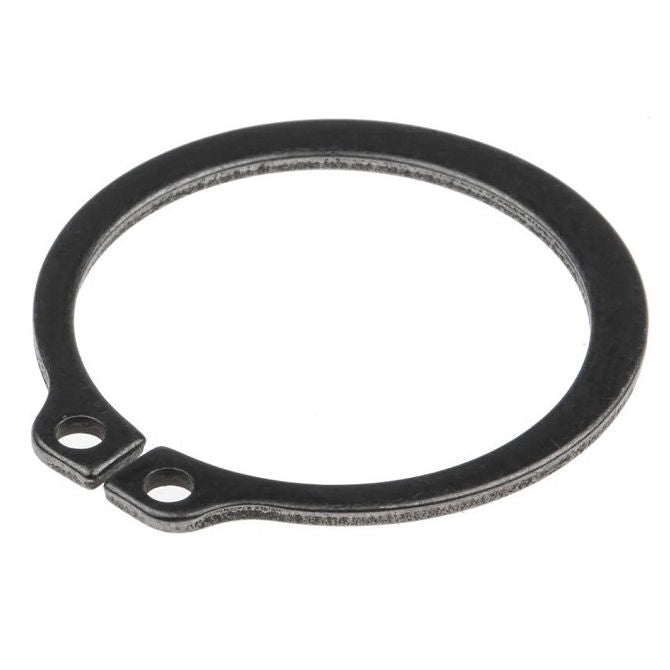

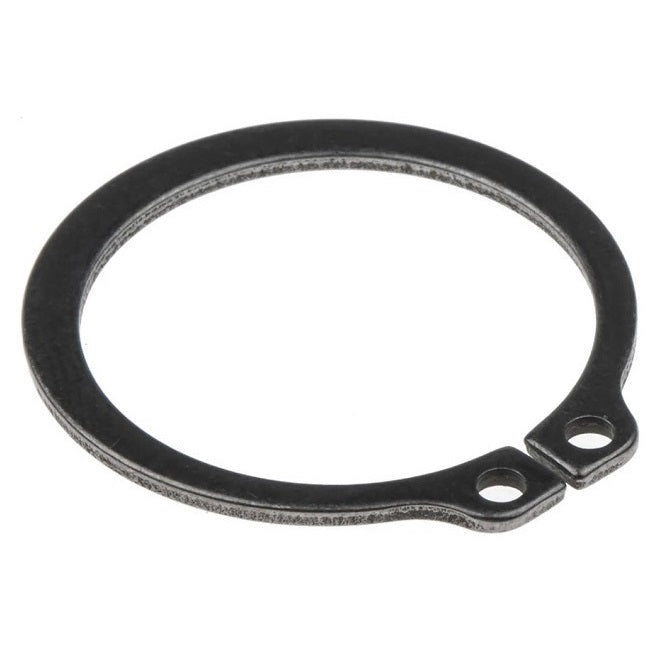

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 21.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.13
(Equiv. 0.787 in.) - Approx. Loose Circlip ID (A) 19.50 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 29.60 mm
- Clearance in Groove (C1) 28.20 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-021
- 98541A461
- Seeger® A-021
- Seeger® A21
- Seeger® A21-BLS
- Seeger® A21X1.2
- Bossard® BN818-021
- Waldes® D1400-021
- Huyett® DSH-021
- NoCor® DSH-021
- Rotor Clip® DSH-021
- Seeger® NZT.A21
- A21BLS
- BN818021
- A021
- D1400021
- D1400-0210
- D14000210
- MD0471MQB021
- 471021
- DSH021
