TP-218-1524-S4 - Datasheet
MBA
Category Information

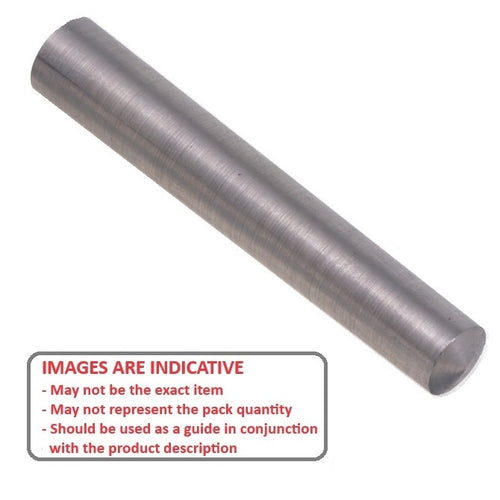

Pins - Taper Imperial - Standard - Stainless SteelStainless Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data

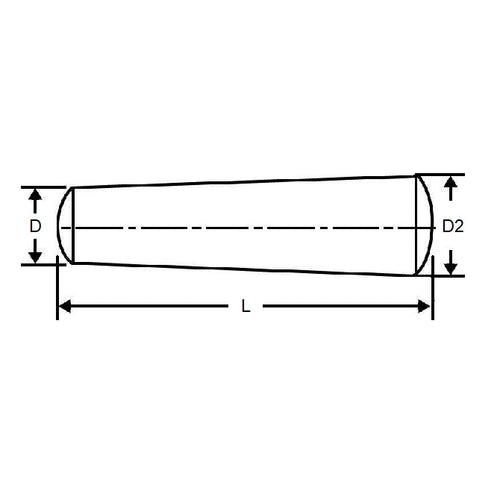

- Nom. Large End Diameter (D2) : 21.83 mm
- Length (L) 152.4 mm
- Nom. Small End Diameter (D) 18.70 mm
- Pin Number 11
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® TPS-11-6000
- NoCor® TPS-11-6000
- TPS116000
