M12649-10 - Datasheet
MBA
Category Information

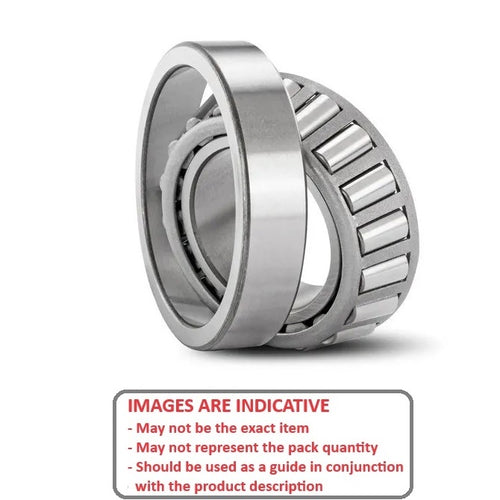

Bearings - Tapered Roller Set - Single Row - InchInch Single Row Tapered Roller Set Bearings. Common automotive sets include cup and cone
- Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
- Matched sets include the cup and the cone.
- An expanded range may be available on special order. Please enquire.

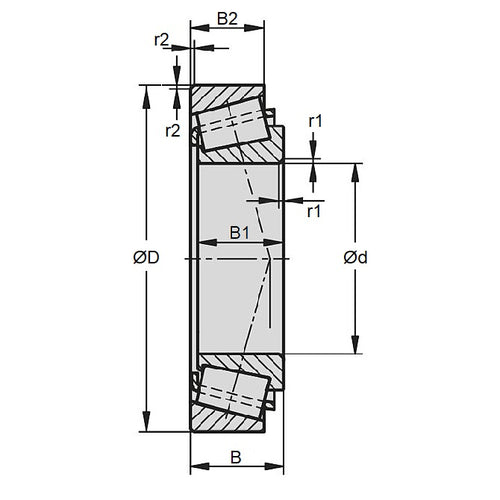

Product Data
- Inside Diameter : 21.430 mm
- Outside Diameter 50.005 mm
- Assembled Width 7.526 mm
- Material Chrome Steel
Product Compliance and Data
