E32204J - Datasheet

MBA

Category Information

Bearings - Tapered Roller Set - Single Row - Metric

Metric Single Row Tapered Roller Set Bearings. Includes cup and cone

  • Tapered roller bearings provide for high thrust and axial loads, and are commonly used in automotive applications such as wheels, differentials and gearboxes.
  • Matched sets include the cup and the cone.
  • An expanded range may be available on special order. Please enquire.

Product Data

  • Inside Diameter : 20 mm
    (Equiv. 0.787 in.)
  • Outside Diameter 47 mm
    (Equiv. 1.85 in.)
  • Assembled Width 19.250 mm
    (Equiv. 0.758 in.)
  • Cone Width 18 mm
  • Cup Width 15 mm
  • Radius Cone (min) 1 mm
  • Radius Cup (min) 1 mm
  • Basic Dynamic Load 27500 N
  • Basic Static Load 28000 N
  • Limiting Speed for Grease 8500
  • Limiting Speed for Oil 11500
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    View full details

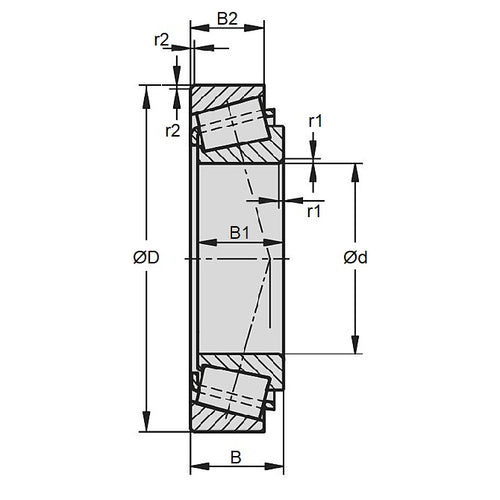

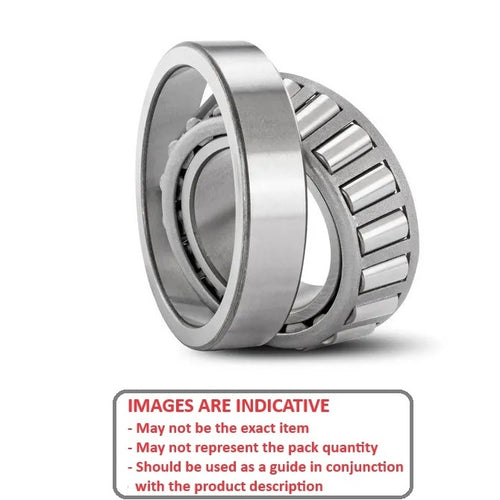

    E32204JDiagramE32204JImage
