6804-ZZ-NR-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data

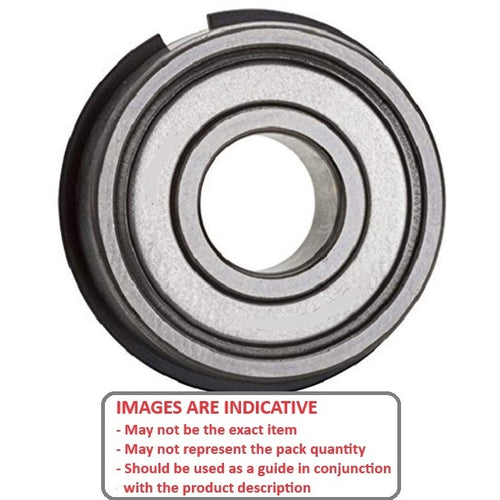

This bearing has a snap ring on the OD
- ID (d)
:
20.000
mm
+ 0.000 / - 0.011
(Equiv. 0.787 in.) - OD (D)
32.000
mm
+ 0.000 / - 0.011
(Equiv. 1.26 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.120
(Equiv. 0.276 in.) - Groove Width (b) 0.950 mm
- Closure Type ZZ
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 0.950 mm
- Max. Dist. To Groove Edge 1.300 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6804
- Limiting Speed 19950
- Cage Type Standard
- Static Load Rating KGf 238.4
- Dynamic Load Rating KGf 389.5
- Radii 0.30 mm
- Inner Shoulder (UI) 22.60mm
- Outer Shoulder (UO) 29.52 mm
- Number of Balls 13
- Clearance CN (5 to 20)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
