COL-02000-032-14-CBO - Datasheet
MBA
Category Information

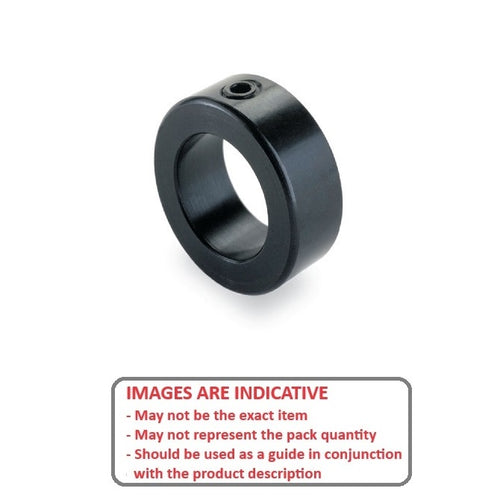

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data

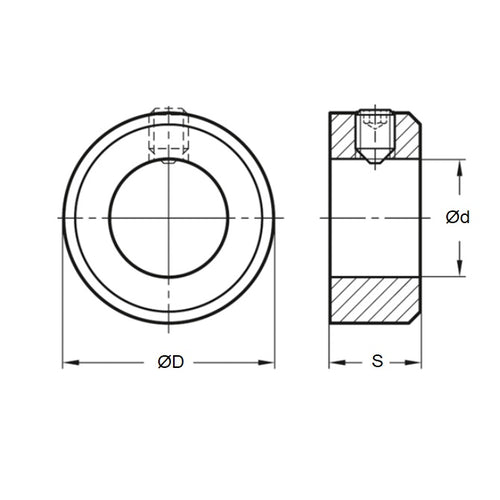

- Suitable Shaft Size (d)
:
20.000
mm
(Equiv. 0.787 in.) - Outside Diameter (D)
32.00
mm
(Equiv. 1.26 in.) - Overall Width (S)
14.0
mm
(Equiv. 0.551 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- 57485K75
- NoCor SCM-020-BO
- SCM020BO
