K-2000-1200-8573BO-C - Datasheet
ExaktKey
Category Information

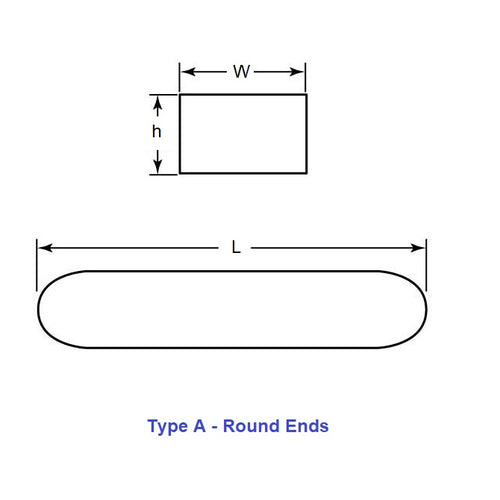

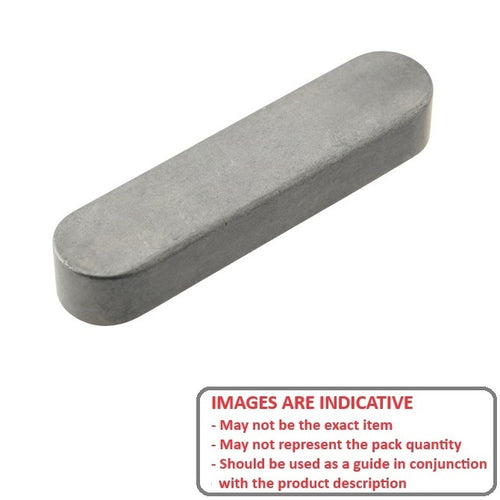

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
20.00
mm
+ 0.076 / - 0.00
(Equiv. 0.787 in.) - Height (h)
12.00
mm
+ 0.043 / - 0.00
(Equiv. 0.472 in.) - Length (L)
85.73
mm
+ / - 0.25
(Equiv. 3.375 in.) - Finish Plain
- Tolerance Type Oversized
- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 352012-085.73
- 35201208573
