REM-200-R-CB - Datasheet
MBA
Category Information

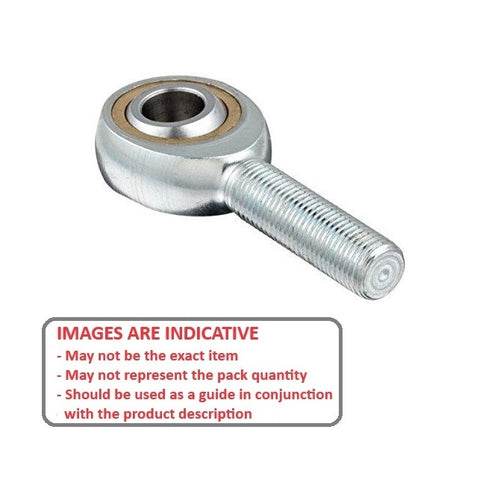

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data

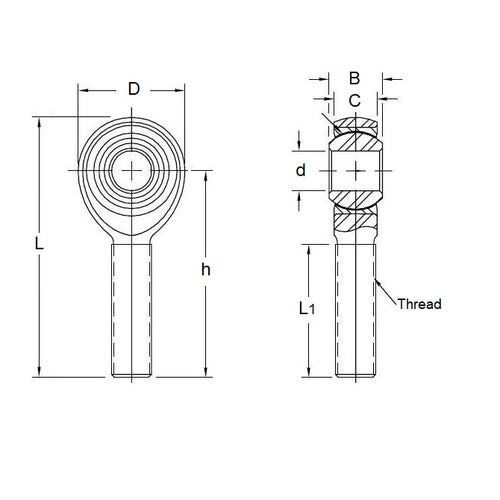

- Eye Size (d1)
:
20
mm
(Equiv. 0.787 in.) - Overall Length (L)
103.000
mm
(Equiv. 4.055 in.) - Thread Size M20x1.5 Right
- Min. Thread Length (l2) 78.00 mm
- Head Width (W) 18.00 mm
- Eye Width (W1) 25.00 mm
- Head Diameter (D) 46.00 mm
- Centre Height (l1) 78.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi E-GYW20
- EGYW20
