UFL004N - Datasheet

MBA

Category Information

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - Aluminium

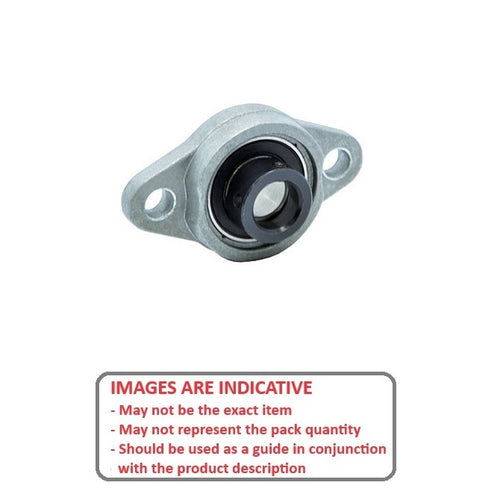

Aluminium Rigid Flanged 2 Bolt Housing and Bearing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Flanged mounting allows for a shaft to run through a bulkhead to which the housing is mounted, or to have a shaft mounted perpendicular to a metal frame.

Product Data

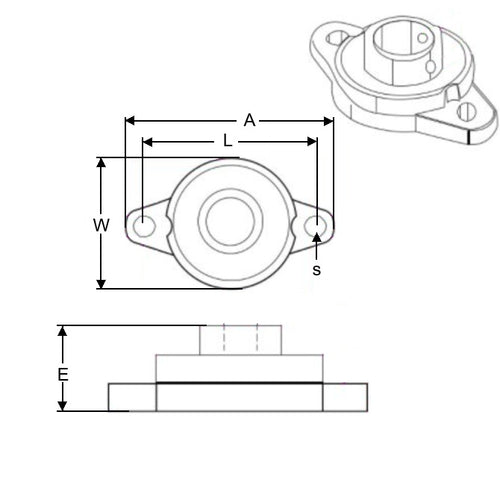

  • Nominal Shaft Size : 20.0 mm
    (Equiv. 0.787 in.)
  • Width (W) 55.0 mm
    (Equiv. 2.165 in.)
  • Overall Length (A) 90.0 mm
    (Equiv. 3.543 in.)
  • Overall Height (E) 26.5 mm
  • Bolt Hole Size (s) 10.0 mm
  • Bolt Hole Centres (L) 71.0 mm
  • Material Aluminium
Country of Origin: TW
