CSC-206-036-08-M - Datasheet
MBA
Category Information

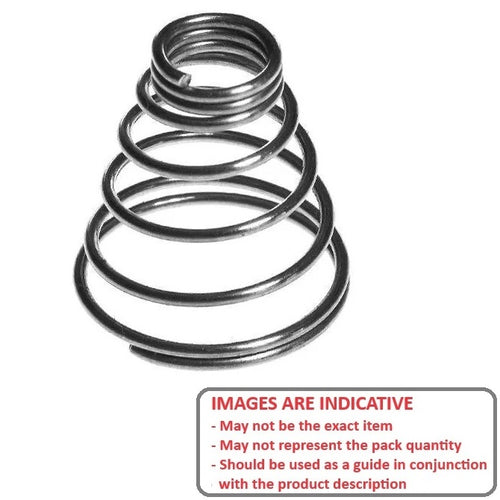

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data

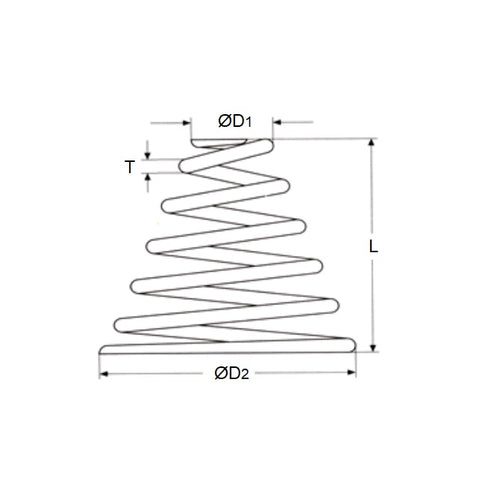

- Large End OD
:
20.60
mm
(Equiv. 0.811 in.) - Free Length
36.3
mm
(Equiv. 1.429 in.) - Small End OD
17.5
mm
(Equiv. 0.689 in.) - Inside Diameter Clearance 15.9 mm
- Wire Thickness 0.79 mm
- Rate 0.0 kg/mm
- Inside Diameter 15.9 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX44
- CX-44
